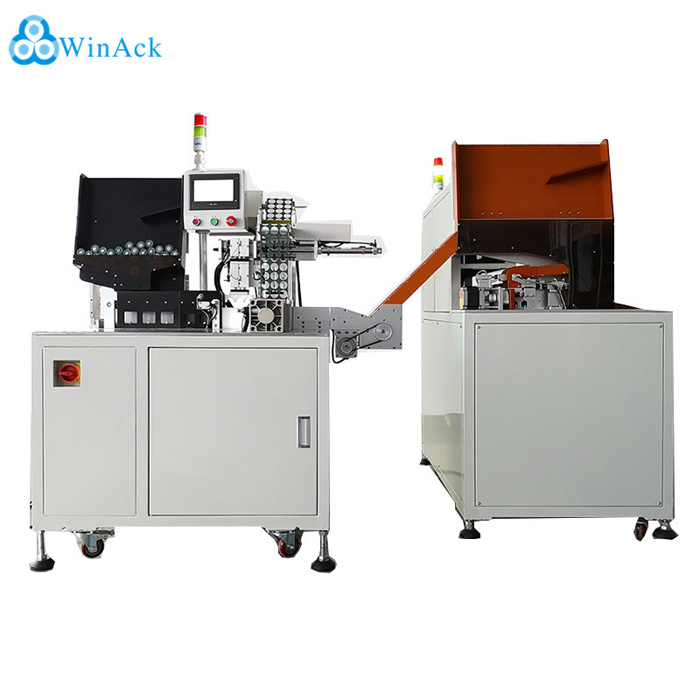

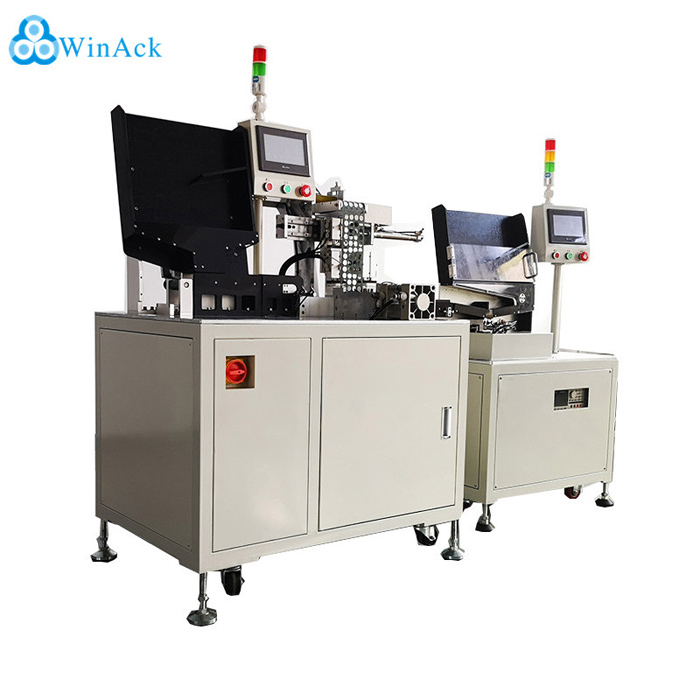

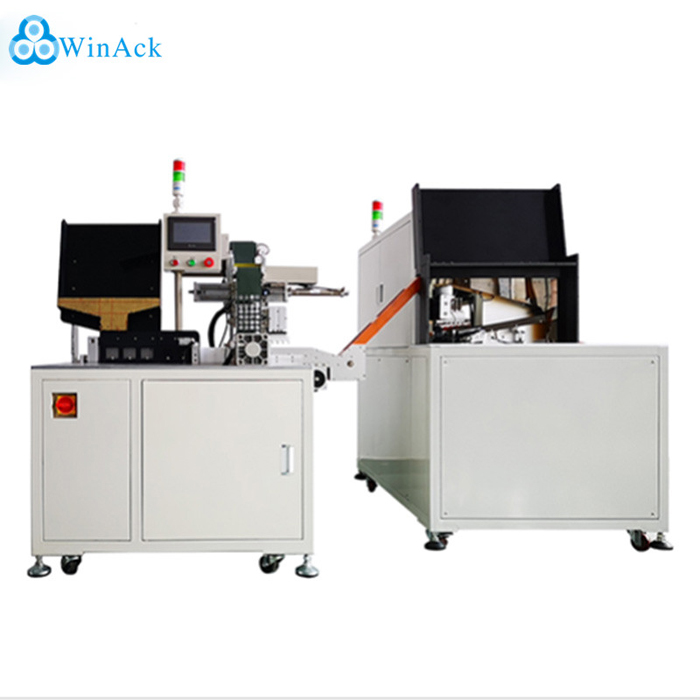

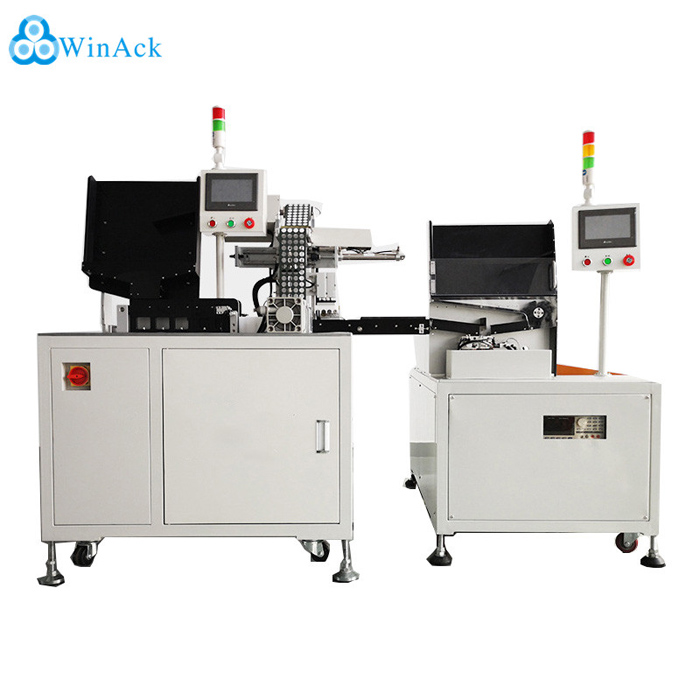

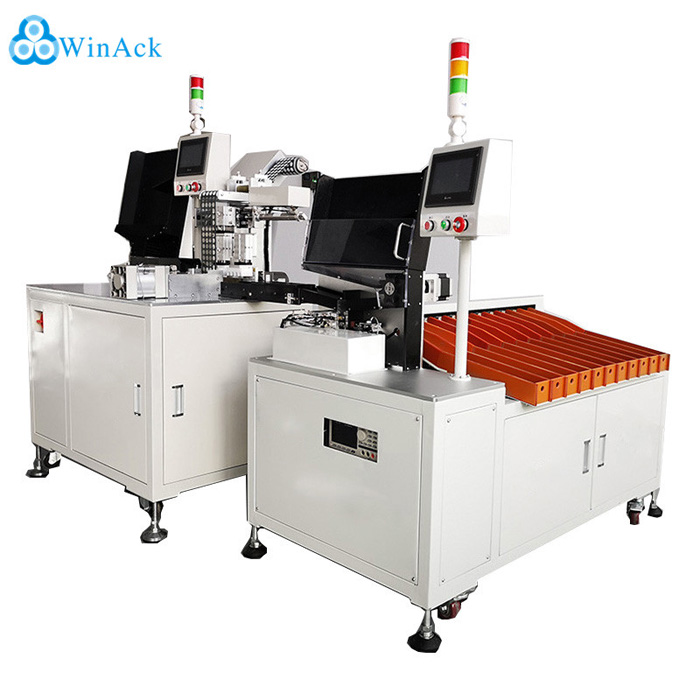

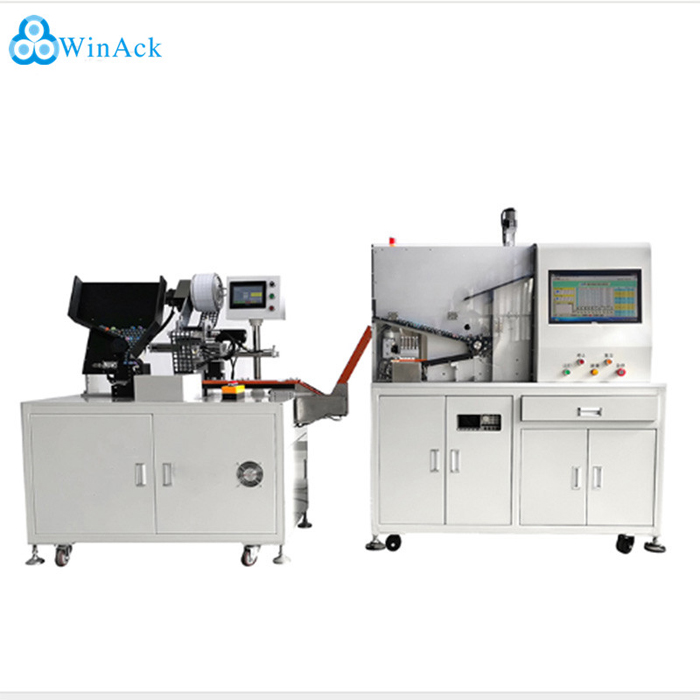

Battery Sorting and Paper Sticking Machine 2 in 1

18650 Battery Cells Sorting and Insulation Paper Sticking Machine 2 in 1

Model: WA-SS-411
Sorting channel: 11 channels
Production efficiency: 4800pcs/hour
Warranty: Two years
Description: The equipment is a battery insulation paper sticking machine connecting with battery cell sorting machine for battery pack assembly, the highly automated human-machine interface makes it so easy to op
INQUIRY EMAIL

Scope of application:

Standard: 2 in 1 18650 cylindrical battery sorting machine & insulation paper sticking machine

Customizable: 26650 li-ion battery cells sorting and insulation paper sticking machine 2 in 1

Customizable: 21700 cells making machine cylindrical battery sorting & insulation paper sticking machine

Customizable: 2 in 1 32650 li-ion battery sorting machine and insulation paper sticking machine

Characteristic:

1. Fast speed: 4800pcs/ hour, good stability.

2. The machine has a high-precision internal resistance and voltage automatic test system.

3. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

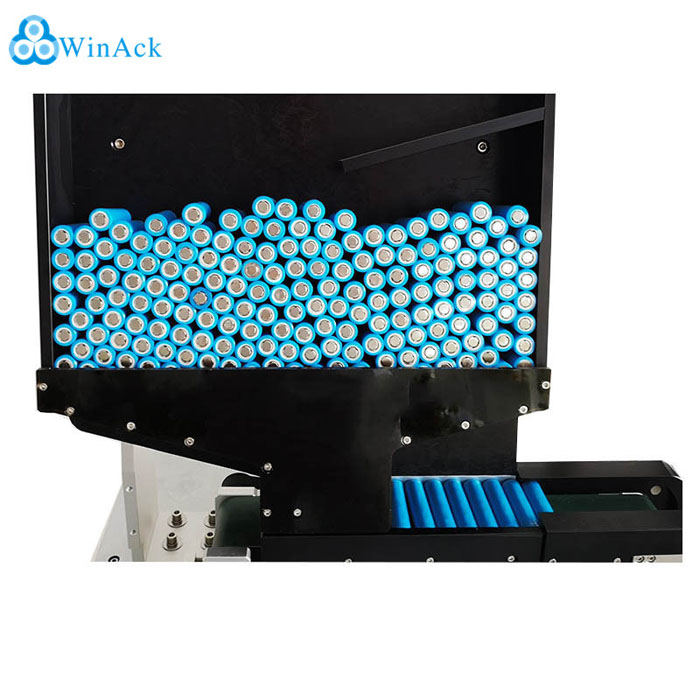

4. The hopper can be put into 500pcs at one time, with high production efficiency and easy operation.

5. The paper fits firmly and does not affect automatic spot welding.

6. During the stamping process, the mold does not stick to the viscous gel.

Device parameters

Name	Eleven-channels Automatic Battery Sorting & Paper Sticking Machine
Model	WA-SS-411
Voltage supply	220V / 50Hz (or can be customized)
Air pressure	0.5~0.8MPa
Battery Tester	Hioki 3561 / HK 3561
Measurement of internal resistance	Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ
Measurement of internal pressure	Range: 0~10V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV
Size(LMH)	20009501500mm
Production efficiency	4800PCS/Hour (Single pad 5 PCS)

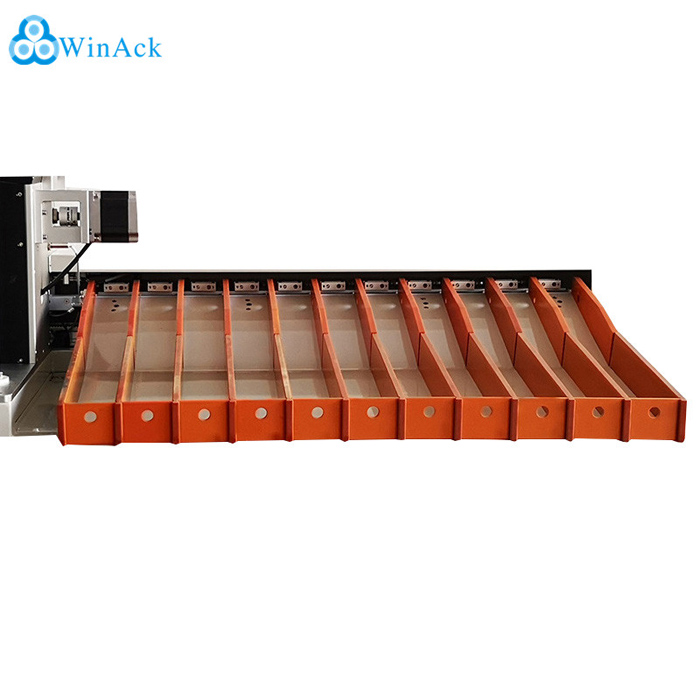

Receiving channel	11 channels, 10 sorting and matching channel,1 unqualified channel
Control device	7 inch Touch screen

Equipment configuration
