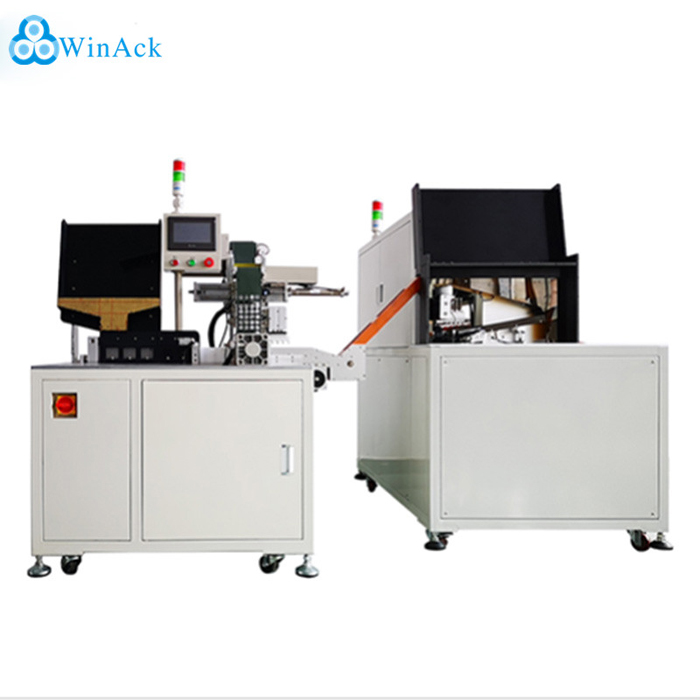

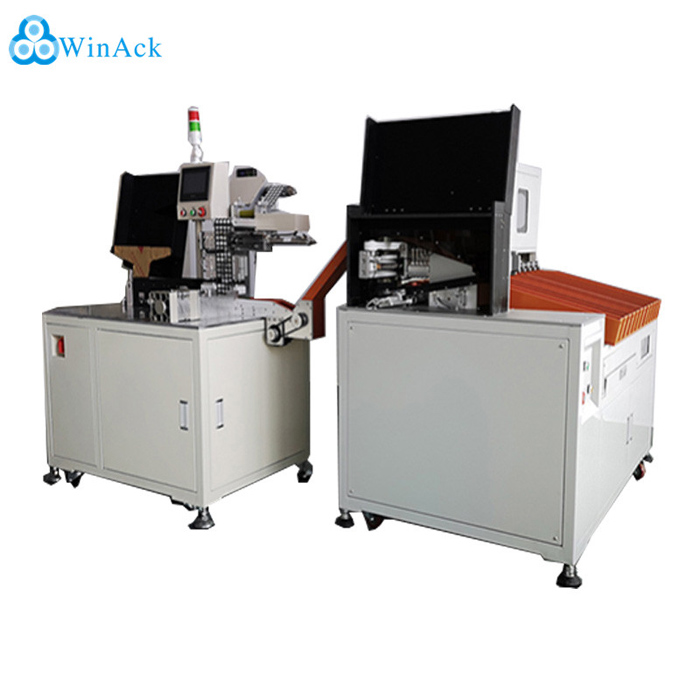

Battery Sorting and Paper Sticking Machine 2 in 1

Automatic 2 in 1 Combination of Battery Sorting and Insulation Paper Sticking Machine

Model: WA-SS-412
Sorting channel: 12 channels
Production efficiency: 5000pcs/hour
Warranty: Two years
Description: The product is a battery making machine 2 in 1 for 18650/21700/32650 lithium battery cells sorting and insulation paper sticking, it is a very good machine for the 18650 26650 32650 21700 cylindrical
INQUIRY EMAIL

Scope of application:

Standard: 18650 cylindrical battery sorting machine & insulation paper sticking machine 2 in 1

Customizable: 26650 cylindrical li-ion battery cells sorting and insulation paper sticking machine 2 in 1

Customizable: 21700 cells making machine cylindrical battery sorting and insulation paper sticking machine

Customizable: 32650 donut label sticker connecting with cylindrical battery sorter for battery pack assembly line

Characteristic:

1. Fast speed: 5000pcs/ hour, good stability.

2. The machine has a high-precision internal resistance and voltage automatic test system.

3. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

4. The hopper can be put into 500pcs at one time, with high production efficiency and easy operation.

5. The paper fits firmly and does not affect automatic spot welding.

6. During the stamping process, the mold does not stick to the viscous gel.

Device parameters

Name	Twelve-channels Automatic Battery Sorting & Paper Sticking Machine
Model	WA-SS-412
Voltage supply	220V / 50Hz (or can be customized)
Air pressure	0.5~0.8MPa
Internal resistance	Hioki 3561 / HOPETECH HK 3561
Measurement of internal resistance	Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ
Measurement of internal pressure	Range: 0~10V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV
Size(LMH)	20009501500mm
Production efficiency	5000PCS/Hour (Single pad 5 PCS)
Receiving channel	12 channels, 11 sorting and matching channel,1 unqualified channel
Control device	7 inch Touch screen
