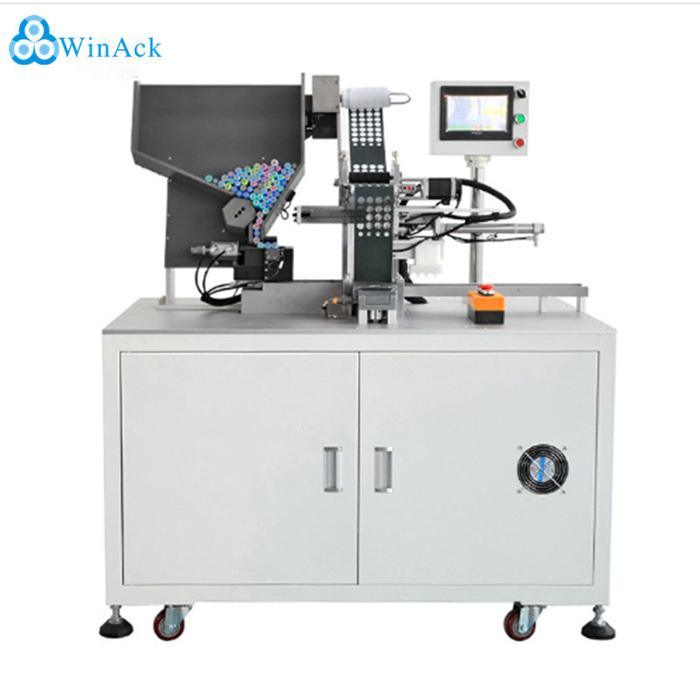

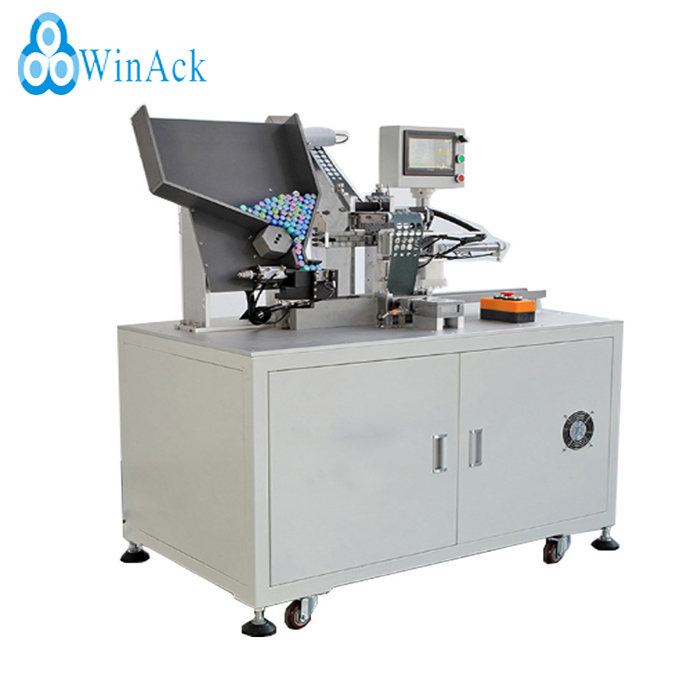

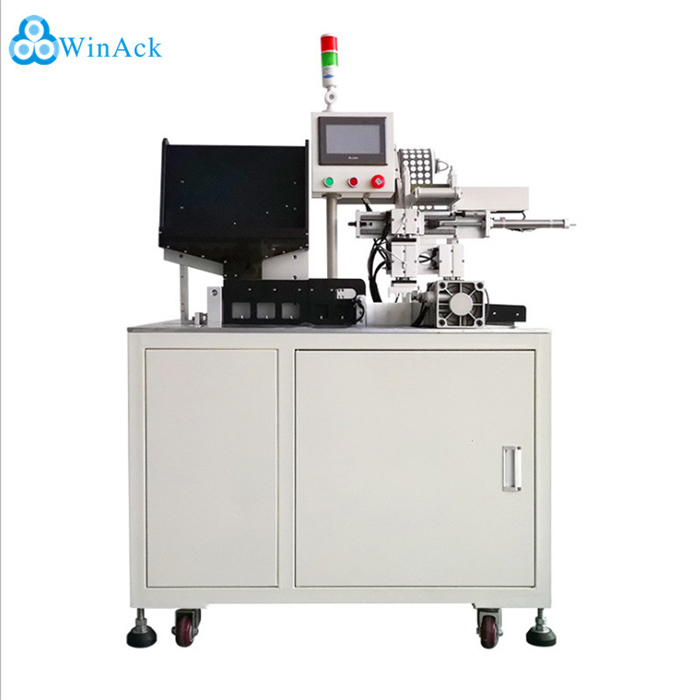

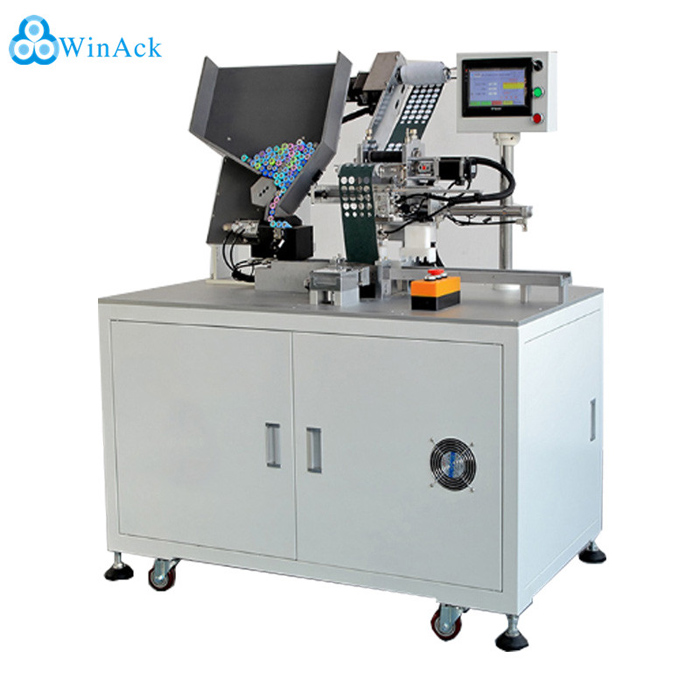

Battery Insulation Cushion Machine

Automatic Battery Insulation Cushion Machine for 18650 Cylindrical Battery Barley Paper Sticking

Model: WA-IC-40
Warranty: Two years
Production efficiency: 4000pcs/hour
Surface mat material: Barley paper or PVC
Description: The product is suitable for automatic lamination of 18650 battery positive insulation paper,the highly automated human-machine interface makes it very easy to operate.
INQUIRY EMAIL

Scope of application:

Customizable: 26650 lithium cells labeling insulation paper sticking/pasting machine

Customizable: 21700 li-ion battery pack assemble insulation paper sticker machine

Customizable: 32650 lithium battery protected positive pole insulating paper machine

Characteristic:

1. Stick 4000pcs/ hour, good stability.

2. The paper fits firmly and does not affect automatic spot welding.

3. During the stamping process, the mold does not stick to the viscous gel.

4. The hopper can be put into 500pcs at one time, with high production efficiency and easy operation.

Device parameters

Name	Battery Insulation Cushion Machine
Model	WA-IC-40
Voltage supply	220V / 50Hz (or can be customized)
Input power	1500W
Air pressure	0.4~0.8Mpa
Surface mat material	Barley paper or PVC
Material specification	Thickness: 0.3MM Maximum breadth: 100MM
Charging pattern	Put in Batteries disposable pit in 500pcs
Production efficiency	4000pcs/Hour (Single pad 4pcs)
Size(LMH)	12007001400mm
Control device	7 inch Touch screen, PLC programming unit and stepper motor
