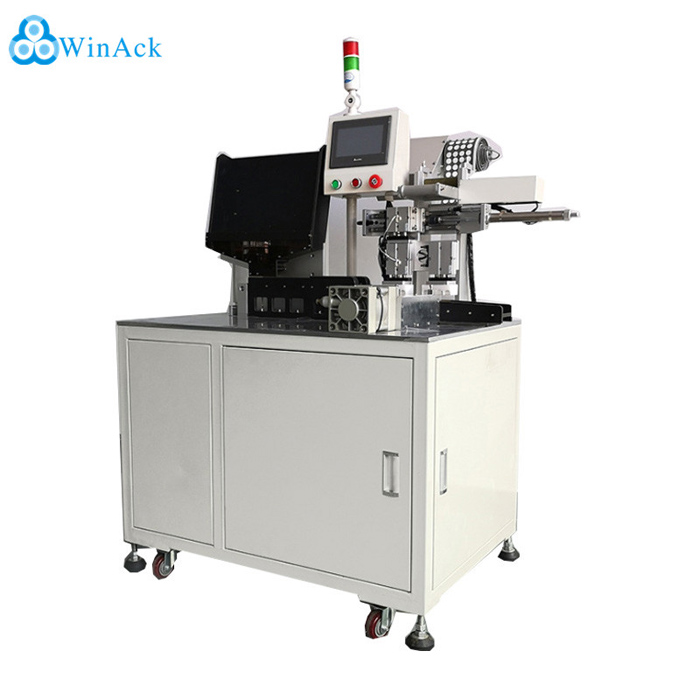

Battery Insulation Cushion Machine

Automatic 18650 27100 Cylindrical lithium Battery labeling Insulation Paper Sticking/Pasting Machine

Model: WA-IC-48
Warranty: Two years
Production efficiency: 4800pcs/hour
Surface mat material: Barley paper or PVC
Description: The machine is used for automatic 18650 27100 cylindrical li-ion battery labeling insulation paper pasting,the highly automated human-machine interface makes it very easy to operate.
INQUIRY EMAIL

Scope of application:

Standard: 18650 lithium battery protected positive pole insulating paper machine

Customizable: 26650 lithium battery pack assemble insulation paper sticker machine

Customizable: 21700 cylindrical lithium battery insulation paper sticking machine

Customizable: 32650 lithium cells labeling insulation paper sticking/pasting machine

Characteristic:

1. Stick 4800pcs/ hour, high stability.

2. The paper fits firmly and does not affect automatic spot welding.

3. During the stamping process, the mold does not stick to the viscous gel.

4. The hopper can be put into 500pcs at one time, with high production efficiency and easy operation.

Device parameters

Name	Battery Insulation Cushion Machine
Model	WA-IC-48
Voltage supply	220V / 50Hz (or can be customized)
Input power	1500W
Air pressure	0.4~0.8Mpa
Surface mat material	Barley paper or PVC
Material specification	Thickness: 0.3MM Maximum breadth: 100MM
Charging pattern	Put in Batteries disposable pit in 500pcs
Production efficiency	4800pcs/Hour (Single pad 4pcs)
Size(LMH)	10007001630mm
Control device	7 inch Touch screen, PLC programming unit and stepper motor

Equipment configuration
