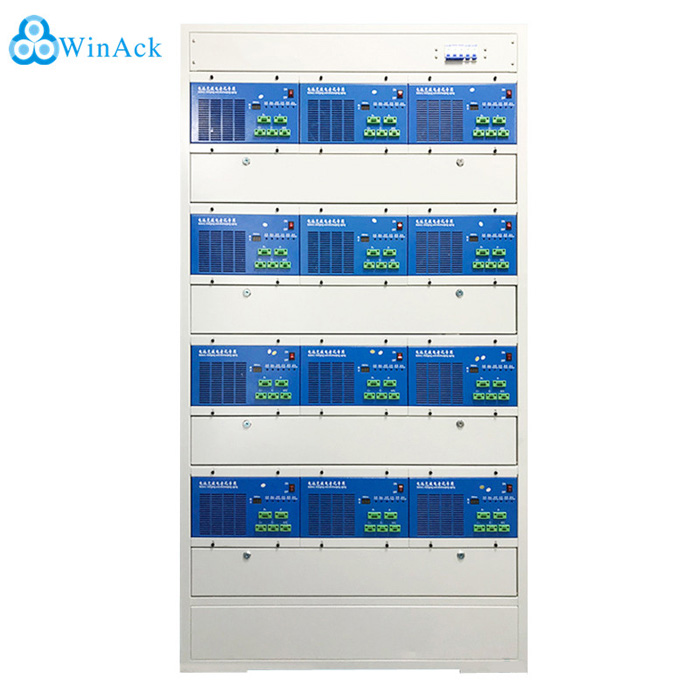

Battery Charge and Discharge Machine for 18650 Battery Cycle Test

Battery Charge and Discharge Machine for 18650 Battery Cycle Test

  • Model: WA-BCT-64C45V5A
  • Channels: 64 Channels(Customizable)
  • Voltage measurement range: 6~45V(Customizable)
  • Current Range: 0.1~5A(Customizable)
  • Description: The battery charge and discharge machine is suitable for 18650 battery cycle life test. The battery tester uses the energy feedback technology.
  • INQUIRY   EMAIL

Product description:

The battery charge and discharge machine is suitable for 18650 battery pack cycle life test. The battery tester uses the energy feedback technology, during the 18650 battery pack cycle life testing process, it can discharge back to the grid.


Scope of application:

The battery charge and discharge machine is primarily used for the battery life cycle testing, such as 18650 battery pack, 21700 battery pack, lithium ion polymer battery…

The 18650 Battery Cycler characteristic:

1. Energy efficient power supply systems.

2. Modular design for easy maintenance.

3. Single channel independent control, high test accuracy.

4. Compact and space efficient.

5. Supports offline mode of operation.

6. Adopt energy feedback technology to save energy and reduce emissions.

Equipment parameters

Name

Battery Charge and Discharge Machine

(45V 5A)

Model

WA-BCT-64C45V5A

Channels

64 Channels Customizable

Power supply

AC 220V ±10% / 50Hz

Power

16KW

Parameters of the channel

Voltage measurement range

Customizable

6~45V

Resolution : 1mV

Voltage range

Customizable

Charging: 6~45V

Discharging: 45~6V

Voltage accuracy

± (0.1%RD + 0.1%FS)

Current Range

Customizable

Charging: 0.1~5A

Discharging: 0.1~5A

Resolution: 1mA

Current accuracy

± (0.1%RD + 0.1%FS)

Parameters of the whole equipment

Control method

Single channel control

Charging mode

Constant current (CC)

Constant voltage (CV)

Constant current and constant voltage

Charging cut-off conditions

Voltage, current, time, capacity

Discharge mode

Constant current (CC)

Constant current and constant voltage source

The battery has no impact when switching from constant current to constant voltage.

Discharge cut-off conditions

Voltage, time, capacity

Protective function

Safety protection: over current, under current, over voltage, low voltage, over capacity, leakage current, reverse connection protection.

Data protection: With data power-off protection function.

Cycle Time

0~1000Hours

Time accuracy

1S

Communication Method

Ethernet

Working condition

Temperature045

Relative humidity85%

Energy feedback

Yes

Maximum battery size

360*120*170mm

Size(L*W*H)

900*750*1700mm

Battery Charge and Discharge Machine for 18650 Battery Cycle Life Test
