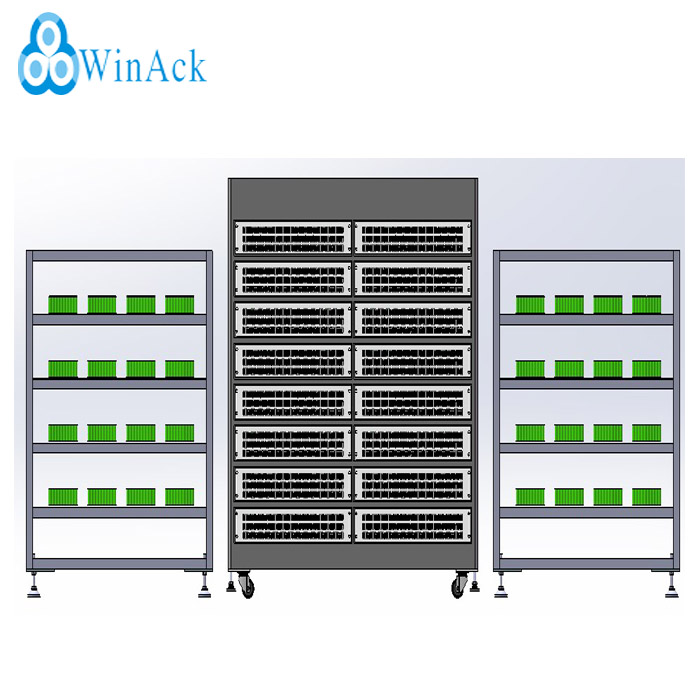

Lithium Battery Pack Aging Cabinet

  • Lithium-ion Battery Life Cycle Testing Equipment
  • Lithium-ion Battery Life Cycle Testing Equipment
Lithium-ion Battery Life Cycle Testing EquipmentLithium-ion Battery Life Cycle Testing Equipment

Lithium-ion Battery Life Cycle Testing Equipment

  • Model: WA-BCT-8C60V30A
  • Voltage test: 0~60V (customizable)
  • Current test: 0~30A (customizable)
  • Channels:8CH (Can be customized)
  • Description: The lithium-ion battery cycler system is suitable for e-bike battery, e-motorcycle battery, UPS battery and AGV battery deep cycle charge and discharge testing.
  • INQUIRY   EMAIL

Product description:

The battery cycle life testing system is mainly used for lithium-ion battery pack charging and discharging deep cycle life test. The test items include: voltage, current, internal resistance and capacity during cycling charge and discharge.


Scope of application:

The battery cycler system is suitable for the lithium-ion battery pack, include: e-bike batteries, electric motorcycle batteries, backup power supplies, EV batteries, etc.


Characteristic:

1. It has the function of constant current and voltage charging, constant current discharging, charging and discharging the battery, and recording the battery capacity.

2. It fully meets the requirements of the same port and separate port of battery pack charge and discharge, i.e. 2 wires (P + P -) and 3 wires (P + P-C -). At the same time, the electric tool battery (CH + P + P -) with positive plate charging protection and negative plate discharging protection can be aged.

3. By charging and discharging the battery, the function of charging protection and discharging protection can be detected.

4.Anti reverse connection protection function; voltage upper and lower limit setting protection; safe discharge current protection.

5. The software system adopts classic and mature C / S mode. There are two communication modes: serial port and network. Serial port can realize accurate communication of several instruments in short distance, and network can realize accurate communication of many instruments in long distance.

Based on Windows operation interface, SQL database is used to store test data, which is very convenient for staff to query and export data online.

6. According to battery bar code, time and equipment number, the aging curve chart of charge and discharge can be viewed, and the curve chart can be exported at the same time.


Battery cycler machine parameters

Name

Lithium-ion Battery Life Cycle Testing Equipment

Model

WA-BCT-8C60V30A

Power supply

AC 220V ±10% / 50Hz

Voltage test

Measuring range

0~60V

Measurement accuracy

±0.1%FSR

Output voltage range

120mV~60V

Output voltage accuracy

±0.1%FSR

Current test

Measuring range

0~30A

Measurement accuracy

±0.1%FSR

Output current range

40mA~30A

Output current accuracy

±0.1%FSR

Power test

Measuring range

1800W

Measurement accuracy

±0.2%FSR

Output power range

1800W

Output power accuracy

±0.2%FSR

Full-scale current response time

≤100ms

Time resolution

1S

Input impedance

≥1MOhm

Supported charging and discharging modes

Constant current charging

Constant voltage charging

Constant current to constant voltage charging

Constant power charging

Constant current discharge

Constant power discharge

Constant resistance discharge

Single cycle steps

399 steps

Cycle measurement range

65535 cycles

Data record

Data collection rate

1Hz:1sample/sec

Data recording rate

1Hz:1point/sec

Data recording conditions

∆T, ∆I, ∆V, ∆Temp

Communication method

Ethernet, 100Mbps

Security

Hardware

Integrated anti-reverse connection module to prevent reverse battery connection

Software

1.Power-down data protection

2.Other protection settings:

Voltage upper or lower limit

Current upper or lower limit

Capacity limit

Energy limit

Voltage change rate

Delay protection

Upper and lower temperature limits

Fan noise

≤60dB

Calibration frequency

≥1year

 Lithium-ion battery life cycle tester for e-bike e-motorcycle AGV

E-bike lithium-ion battery pack life cycle tester
