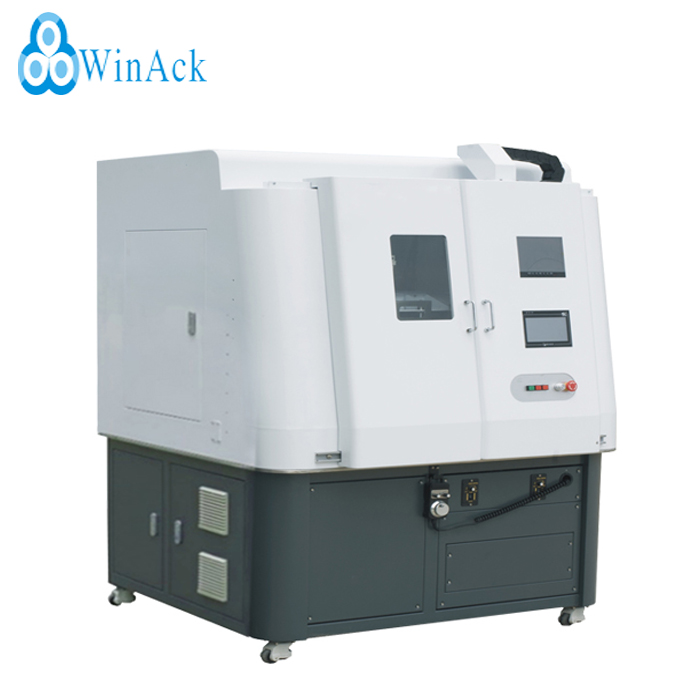

Battery Pack Laser Welder

Battery Pack Laser Welder

  • Product model: WA-LW-1080iYF
  • Welding speed: 50~80mm/s
  • Maximum welding range: 400*200mm
  • Positioning accuracy: ≤±0.05mm
  • Description: We are not only a supplier of battery pack laser welder machine, but also provide solutions for battery pack assembly production line. Choose WinAck Battery, choose professional.

Product description:

The battery pack laser welder is a non-contact flexible manufacturing machine that integrates precision fixtures, coaxial vision and optics, laser welding, and robotics.

The battery pack laser welder is suitable for the welding of lithium-ion battery packs, which can further improve production efficiency, save energy consumption, extend service life, ensure welding accuracy and improve manufacturing processes.


1. It can weld points, straight lines, circles, squares or any plane graphics composed of arcs.

2. The coaxial CCD monitoring system is adopted to facilitate the observation of processing quality and processing position.

3. Equipped with inert gas protection device to effectively improve welding quality and pass rate.

4. The fixtures can be customized according to actual needs.

Scope of application:

The battery pack laser welder is suitable for welding lithium-ion battery, including the pole ear welding, flexible connection welding, top cover welding, sealing pin welding, module busbar welding, module BMS welding, module end plate welding and module side plate welding. The welding methods include spot welding and seam welding.

Equipment parameters

Product name

Battery Pack Laser Welder

Product model


Input voltage

220V±5%, 50/60Hz

Welding speed




300~800mm (Optional)


100~300mm (Optional)


50~150mm (Optional)

Maximum welding range


Positioning accuracy


Control method

PC software control

Drive mode

Servo drive

Welding protection system

Configure inert gas protection device


Customized according to actual needs

Weld monitoring

Coaxial CCD monitoring system


CCD visual positioning system
