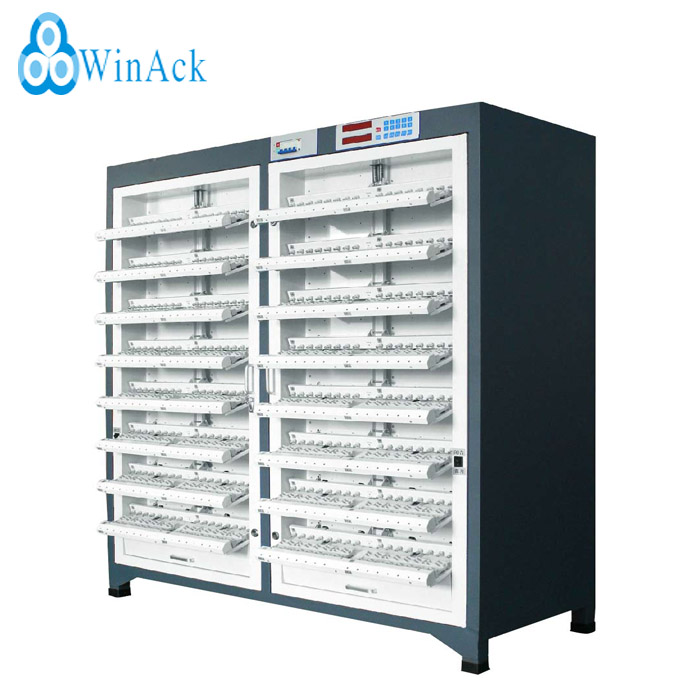

18650 Battery Cycle Life Test Equipment

18650 Battery Cycle Life Test Equipment

  • Model: WA-BCT-512C5V3A-C
  • Channels: 512 Channels(Customizable)
  • Voltage measurement range: 0 - 5V(Customizable)
  • Current Range: 0.005A - 3A (Customizable)
  • Description: The 18650 battery cycle life test equipment is also called the 18650 battery formation and grading machine, it is used for pre-charge activation and capacity testing of 18650 battery cells.
  • INQUIRY   EMAIL

Product description:

The 18650 battery cycle life test equipment is also called the 18650 battery formation and grading machine, it is used for pre-charge activation and capacity testing of 18650 battery cells.


Scope of application:

The battery cycler is primarily used for battery cell cycle life testing, but can also be used for battery cell pre-charge activation and capacity grading. It is suitable for various types of cylindrical lithium-ion battery cells, such as 18650, 21700, 26650, etc.

For the battery pack assembly factory, the capacity of the battery cells can be further tested and sorted to ensure the quality of the battery pack.


The 18650 Battery Cycle Life Test Equipment Characteristic:

1. Energy efficient power supply systems.

2. Energy recovery circuit design.

3. Modular design for easy maintenance.

4. Auto-clip design simplifies operation.

5. Low miscarriage of justice for patented thimble designs.

6. Compact and space efficient.

7. Supports offline mode of operation.

8. Use trays to load battery cells to improve production efficiency.

Battery Cycler Equipment Parameters

Name

18650 Battery Cycle Life Test Equipment (5V 3A)

Model

WA-BCT-512C5V3A-C

Channels(Customizable)

512 Channels

Battery type(Customizable)

18650, 21700, 26650

Power supply

AC 220V ±10% / 50Hz

Power

≤10KW

Parameters of the channel

Voltage measurement range

(Customizable)

0 - 5V

Resolution: 1mv

Voltage range

(Customizable)

Charging: 0V - 4.5V

Discharging: 4.5V - 2V

Voltage accuracy

(0.1%RD + 0.1%FS)

Current Range

(Customizable)

Charging: 0.005A - 3A

Discharging: 0.005A - 3A

Resolution: 1mA

Current accuracy

(0.1%RD + 0.1%FS)

Battery Pitch

35mm

Battery length

15~100mm

Parameters of the whole equipment

Control method

Overall cabinet control

Charging mode

Constant current (CC)

Constant voltage (CV)

Constant current and constant voltage

Charging cut-off conditions

Voltage, current, time, capacity

Discharge mode

Constant current (CC)

Constant current and constant voltage source

The battery has no impact when switching from constant current to constant voltage.

Discharge cut-off conditions

Voltage, time, capacity

Protective function

Safety protection: over current, under current, over voltage, low voltage, over capacity, leakage current, reverse connection protection.

Data protection: With data power-off protection function.

Process settings

64 working steps and 256 cycles.

Sampling inspection cycle

≤8S (whole cabinet)

Sorting method

Various conditions (capacity, time, open circuit voltage, discharge platform, etc.) are sorted.

Communication Method

Ethernet

Qualification rate of products

≥98%

Equipment operation rate

≥95%

Fixture form

Four-Wire Fixture

Test Fixture for Cylindrical Lithium-ionBattery

Battery set type

Battery tray

Fixture spacing

35mm

Heat Dissipation Method

Air-cooled, using low-noise axial fan exhaust cooling.

Working condition

Temperature:0~45℃

Relative humidity≤85%

Frame color

Cold-rolled steel, baked enamel finish

Size(L*W*H)

1500*700*1830mm
