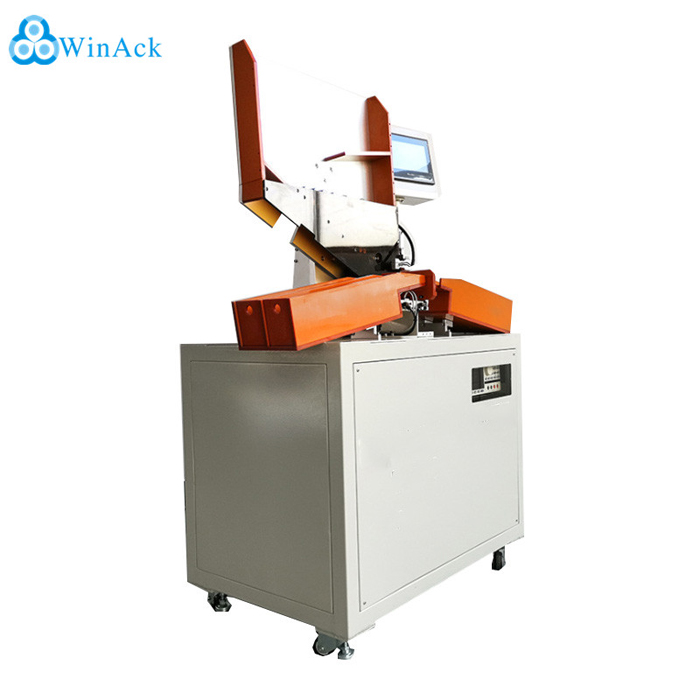

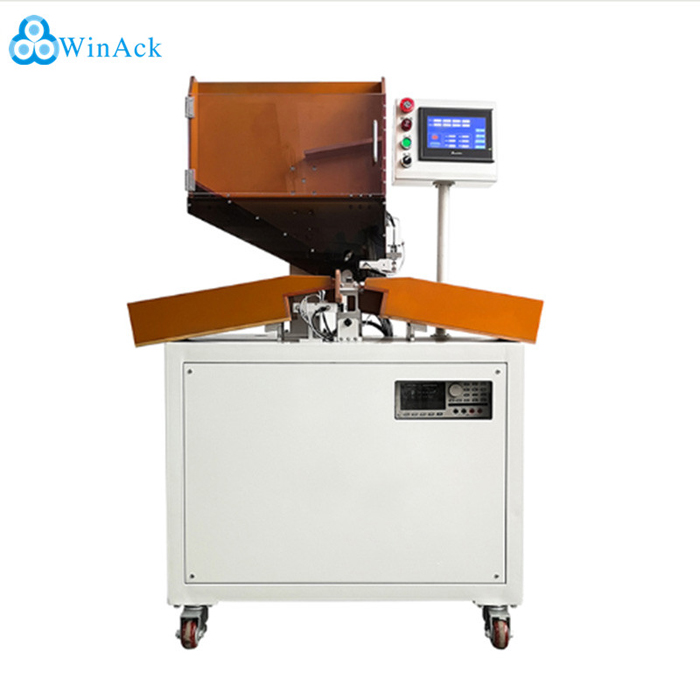

Cylindrical Battery Automatic Sorting Machine

18650 Battery Sorter Sorting Machine for Cylindrical Battery Pack

Model: WA-AS-5C
Sorting channel: 5 channels
Production efficiency: 4200pcs/hour
Warranty: Two years
Description: The automatic battery sorter is a equipment for 18650 21700 battery cell sorting, through manual loading and simple settings, the battery sorting process can be completed.
INQUIRY EMAIL

Scope of application:

Standard: 18650 cylindrical battery sorting machine

Customizable: 26650 automatic battery voltage resistance sorter sorting machine for battery pack manufacturer

Customizable: 21700 li-ion battery automatic sorting machine for battery pack line

Customizable: 32650 lithium battery cell testing tester machine / battery sorting machine

Characteristic:

1. Fast sorting speed: 4200pcs/ hour, good stability.

2. This product has a high-precision internal resistance and voltage automatic test system.

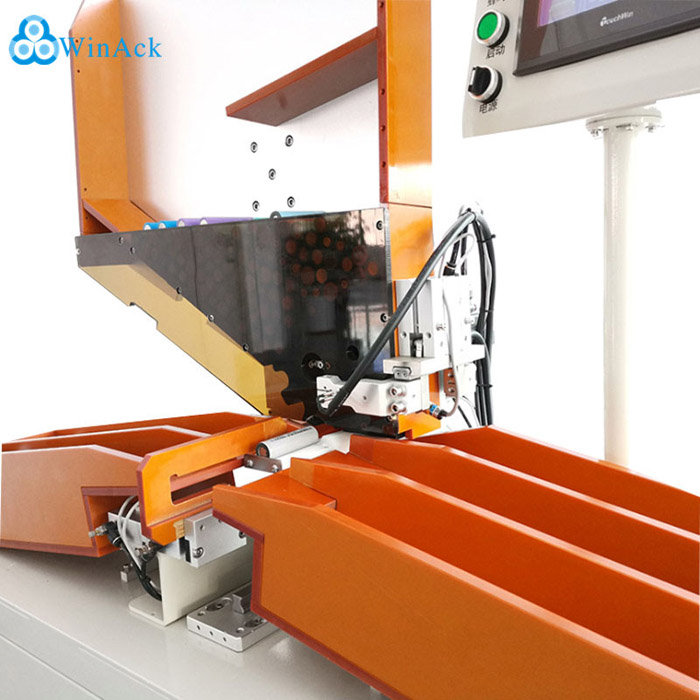

3. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

4. The hopper can be put into 500pcs at one time, with high production efficiency and easy operation.

5. The battery sorting machine can be docked with the automatic 18650 cylindrical battery barley paper sticking machine, thereby further saving labor.

Device parameters

Name	5 channels Automatic Battery Sorting Machine
Model	WA-AS-5C
Voltage supply	220V / 50Hz (or can be customized)
Air pressure	0.4~0.7Mpa
Battery Tester	Hioki 3561 / HK 3561
Measurement of internal resistance	Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ
Measurement of internal pressure	Range: 0~10V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV
Size(LMH)	9805201360mm
Production efficiency	4200PCS/Hour
Control device	7 inch Touch screen
Sorting speed	60~70 PPM
