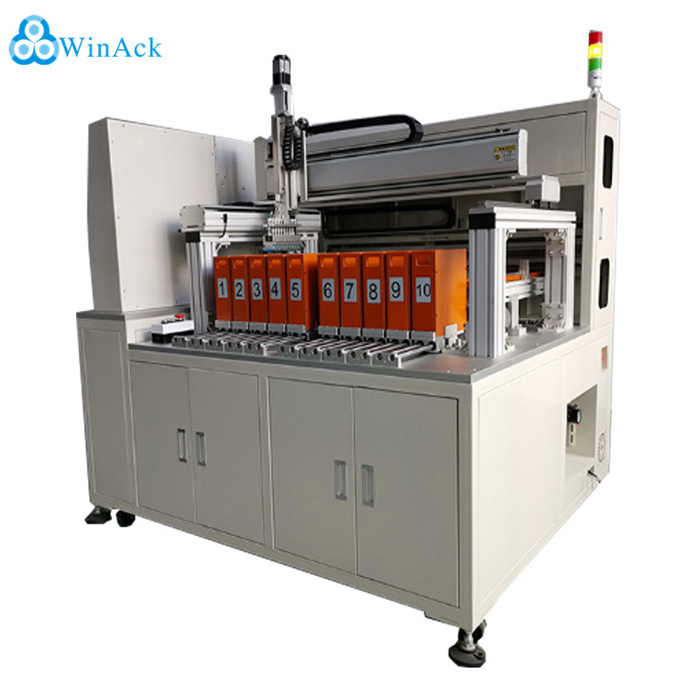

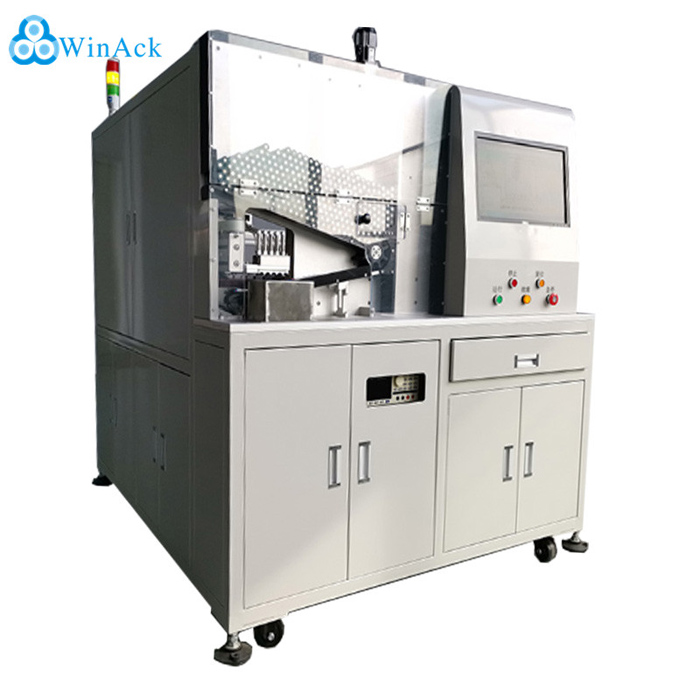

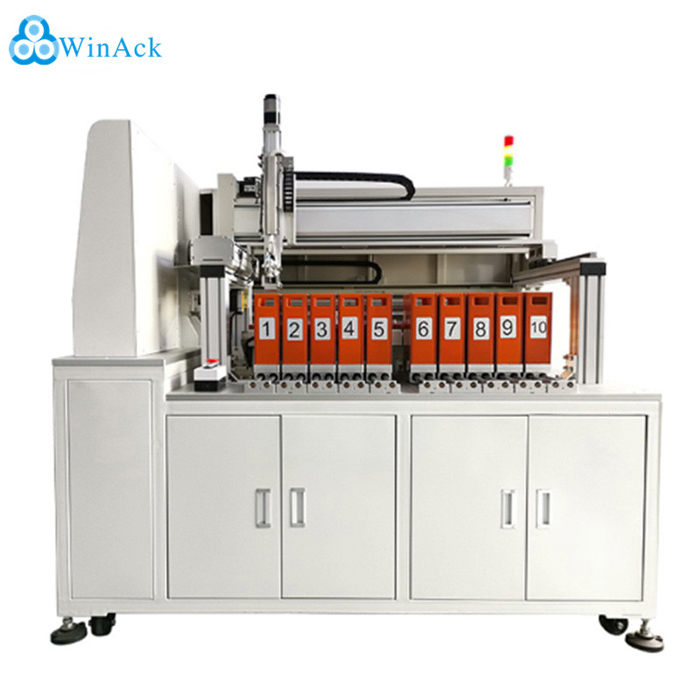

10-Channels Automatic Battery Sorting Machine with Battery Collection Box

Product description:

The 10-Channels automatic battery sorting machine with battery collection box is a machine consisting of a voltage internal resistance tester for testing the internal voltage resistance of a battery. Calculate the power of each battery according to the software settings of the host, and switch between different levels of batteries according to the judgment result. Automatically classify different channels of battery products.

The automatic classification device is composed of a feeding mechanism, a detection mechanism, an automatic classification mechanism and a receiving mechanism. This machine system designs and develops the upper computer software according to user needs, and automatically classifies the batteries according to the grouping information and collects them into the corresponding receivers.

Scope of application:

Standard: 18650 battery automatic sorting machine for battery pack manufacturer

Customizable: 26650 lithium battery cells testing tester machine / battery sorting machine

Customizable: 21700 automatic battery voltage resistance sorter sorting machine for battery pack line

Customizable: 32650 automatic battery sorter sorting machine for cylindrical battery

Characteristic:

1. Fast sorting speed: 60~70 PPM, good stability.

2. This product has a high-precision internal resistance and voltage automatic test system.

3. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

4. It is designed to sort cylindrical cells, easy to observe test results, simple operation and high efficiency.

5. It is easy to refill cells during the process.

Device parameters

Equipment configuration
