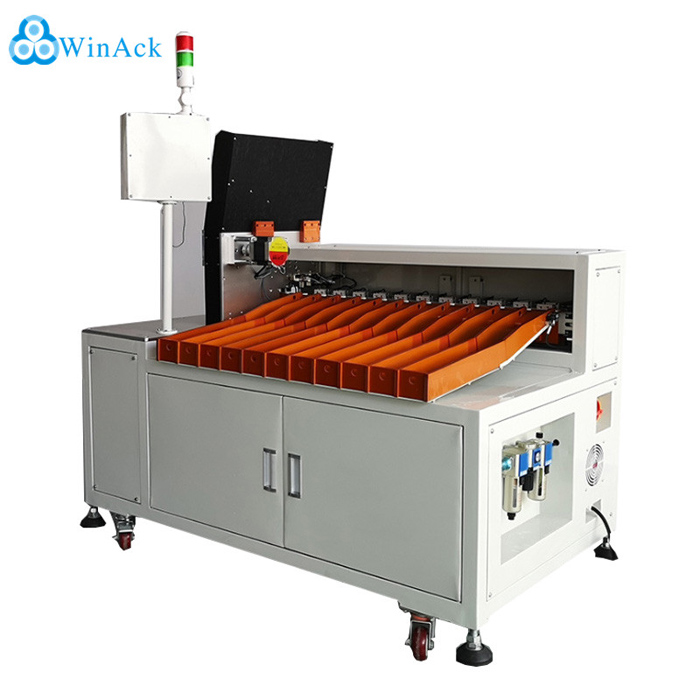

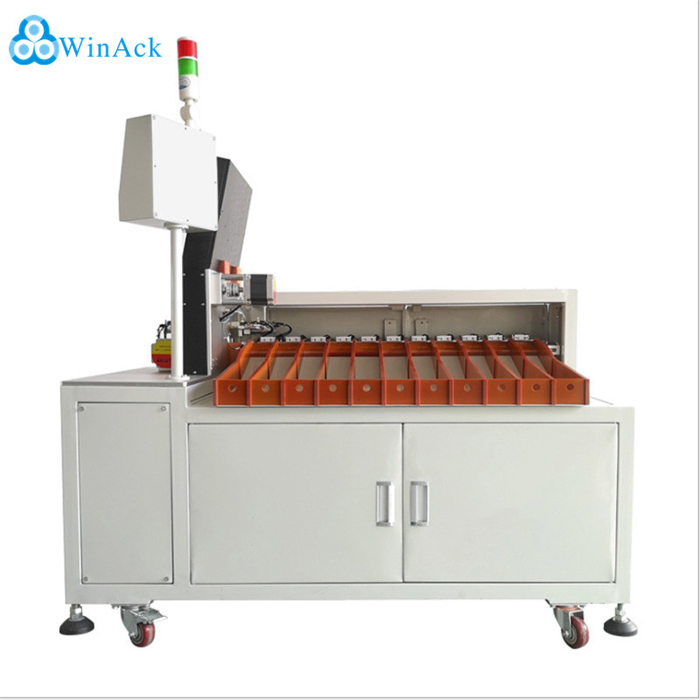

Cylindrical Battery Automatic Sorting Machine

Automatic Battery Sorting Machine for Battery Auto Organizer and Tester

Model: WA-AS-11A
Sorting channel: 11 channels
Production efficiency: 4500~5000pcs/hour
Warranty: Two years
Description: The lithium-ion battery cell sorting machine is used for 18650 battery pack assembly line for battery cell testing and grading.
INQUIRY EMAIL

Scope of application:

Standard: 18650 li-ion battery automatic sorting machine for battery pack line

Customizable: 26650 lithium battery cell testing tester machine / battery sorting machine

Customizable: 21700 automatic battery voltage resistance sorter sorting machine for battery pack manufacturer

Customizable: 32650 automatic battery sorter sorting machine for cylindrical battery pack line

Characteristic:

1. Fast sorting speed: average sorting 4500~5000pcs/ hour, high stability.

2. This product has a high-precision internal resistance and voltage automatic test system.

3. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

4. Equipped with 16-inch display, easy to observe test results, simple operation and high efficiency.

5. The structure of the model has been simplified to make it more convenient for employees.

6. The battery sorting machine can be docked with the 18650 lithium battery insulation paper sticking/battery sticker machine, thereby further saving labor.

Device parameters

Name	Eleven channels Automatic Battery Sorting Machine
Model	WA-AS-11A
Voltage supply	220V / 50Hz (or can be customized)
Air pressure	0.5~0.8Mpa
Battery Tester	Hioki 3561 / HK 3561
Measurement of internal resistance	Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ
Measurement of internal pressure	Range: 0~10V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV
Production efficiency	4500~5000PCS/Hour
Control device	16 inch Monitor + IPC
Sorting speed	65~75 PPM
Size(LMH)	15207701680mm
Weight	＜200kg
