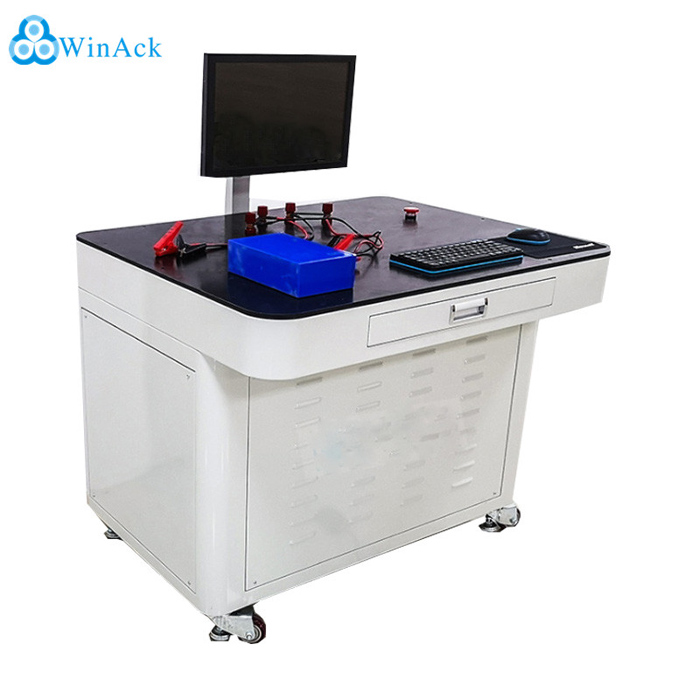

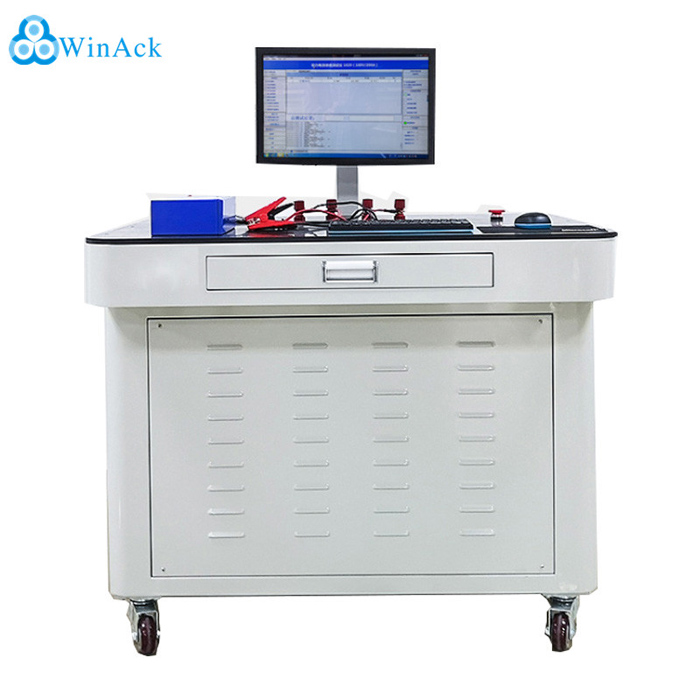

Product description:
The battery pack integrated testing equipment for finished battery is a fast and accurate device for testing the performance of finished battery. The main test items are: AC internal resistance, discharge over current test, discharge test, open circuit voltage, short circuit protection test, charge test and charge protection test.
The system uses a 32-bit ARM processor and a 16-bit AD converter to obtain voltage and current. Compared with similar equipment, this system has faster test speed, high test accuracy, and supports multiple devices to run simultaneously. Widely used in automotive electronics battery, electric bicycles, aerospace battery, marine battery, solar storage battery, electric motorcycles, backup power batteries, communication power and other power battery productions, scientific research and experimental testing.
Scope of application:
The battery comprehensive tester for 18650 battery pack integrated testing production line is suitable for electric motorcycle battery, finished batteries for electric vehicles, backup power batteries, motorcycle battery, EV battery…
Battery pack comprehensive tester Characteristic:
1. Support voltage, discharge, internal resistance, over-current comprehensive function test.
2. Friendly man-machine interface, programmable control test items.
3. The combination of PC and processing control, the data support EXCEL format export storage, convenient data recall.
4.Battery pack high current protection test, battery short circuit protection test.
5. Can be customized for customers through can and 485 communication protocols.
6. Battery cell conformance assessment test, the device supports the function of charging and activating the battery.
7. Support online updates and upgrades with customized test software.
Device parameters
|
Name |
Battery pack comprehensive tester |
|
Model |
WA-CT-1040 |
|
Power supply |
AC220V / 50Hz |
|
Voltage test |
12V-85V ±5mV |
|
Current test |
1A~99A ±0.1A (customizable) |
|
Load voltage test |
12V~85V ±5mV |
|
Load current test |
1A~99A ±0.1A |
|
Maximum test voltage |
85V ±5mV (customizable) |
|
Maximum discharge voltage |
85V ±0.1V (customizable) |
|
DC internal resistance test current |
1A~10A ±0.1A |
|
DC internal resistance test |
10~999 mΩ ±1 mΩ |
|
Maximum over current |
99V ±0.1A (customizable) |
|
Maximum charging current |
10A ±0.1A |
|
Minimum charging voltage |
12V ±5mV |
|
Minimum charging current |
1A ±0.1A |
|
Operating temperature |
0~50℃ |
|
Size(L*W*H) |
1100*1200*600mm |
|
Overall weight |
40KG |
