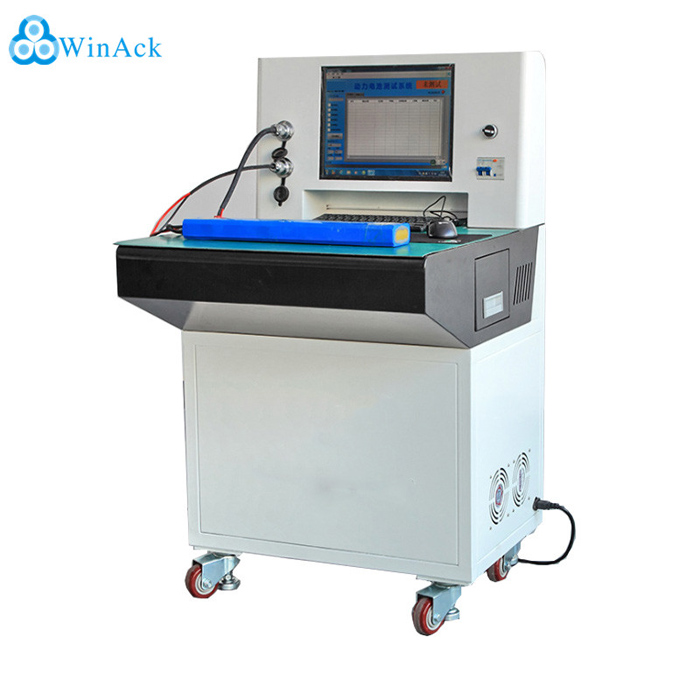

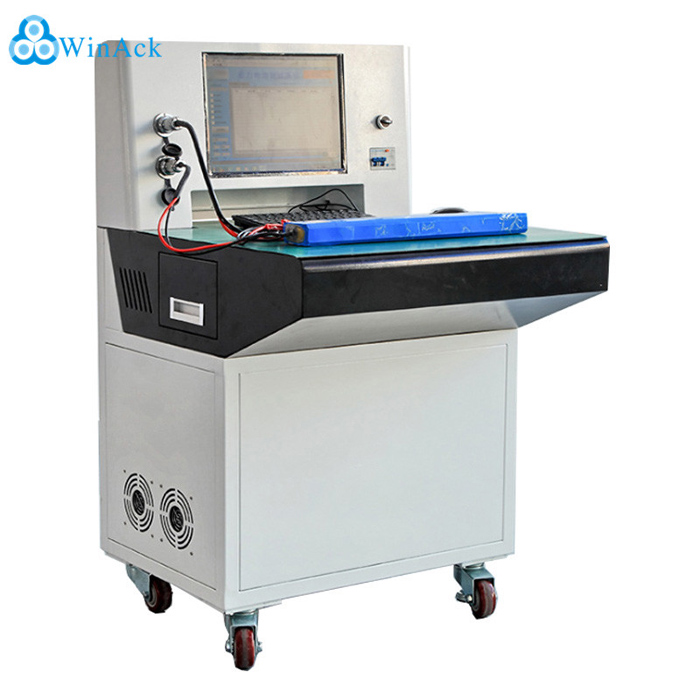

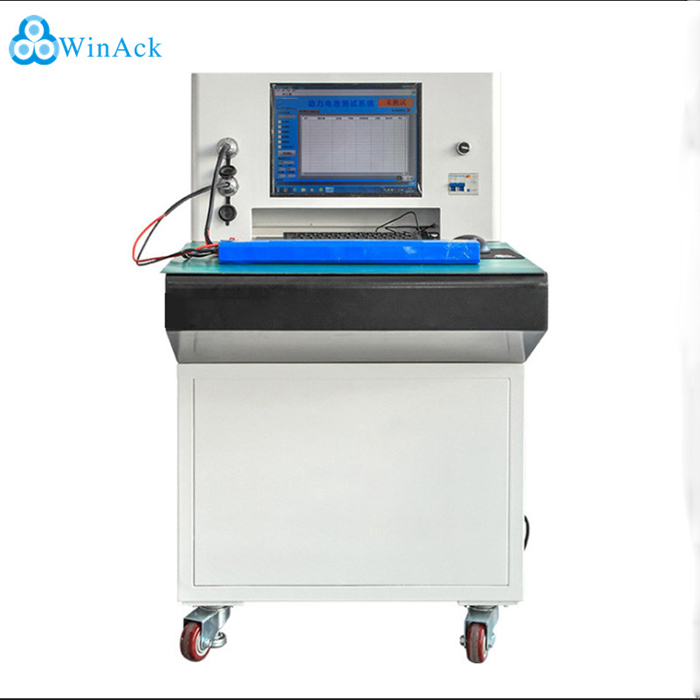

Battery Pack Comprehensive Tester for Finished Battery Inspection/Automatic 18650 Battery Pack Tester Test Machine

  • Model: WA-CT-8510
  • Voltage test: 12V-85V ±5mV
  • Current test: 1A~99A ±0.1A (customizable)
  • Warranty: Two years
  • Description: The 18650 battery pack tester is our second generation lithium-ion battery pack testing equipment for the finished battery analyzer.
  • INQUIRY   EMAIL

Product description:

This battery pack comprehensive tester is our second generation battery test equipment for finished battery inspection. The main test items include: voltage test, discharge test, current test, load voltage test, load current test, DC internal resistance test, maximum overcharge test, maximum over current test, minimum charge test, minimum over current test, minimum voltage test, minimum current test…


Scope of application:

The automatic 18650 battery pack tester test machine is suitable for electric motorcycle battery, finished batteries for electric vehicles, motorcycle battery, EV battery…


Battery pack comprehensive tester Characteristic:

1. Support voltage, discharge, internal resistance, over-current comprehensive function test.

2. The combination of PC and processing control, the data support EXCEL format export storage, convenient data recall.

3. Can be customized for customers through can and 485 communication protocols.

4. Support online updates and upgrades with customized test software.


Device parameters

Name

Battery pack comprehensive tester

Model

WA-CT-8510

Power supply

AC220V / 50Hz

Voltage test

12V-85V ±5mV

Current test

1A~99A ±0.1A   (customizable)

Load voltage test

12V~85V ±5mV

Load current test

1A~99A ±0.1A

Maximum test voltage

85V ±5mV  (customizable)

Maximum discharge voltage

85V ±0.1V   (customizable)

DC internal resistance test current

1A~10A ±0.1A

DC internal resistance test

10~999 mΩ ±1 mΩ

Maximum over current

99V ±0.1A  (customizable)

Maximum charging current

10A ±0.1A

Minimum charging voltage

12V ±5mV

Minimum charging current

1A ±0.1A

Operating temperature

0~50

Size(L*W*H)

1100*1200*600mm

Overall weight

40KG
