Battery Test Equipment

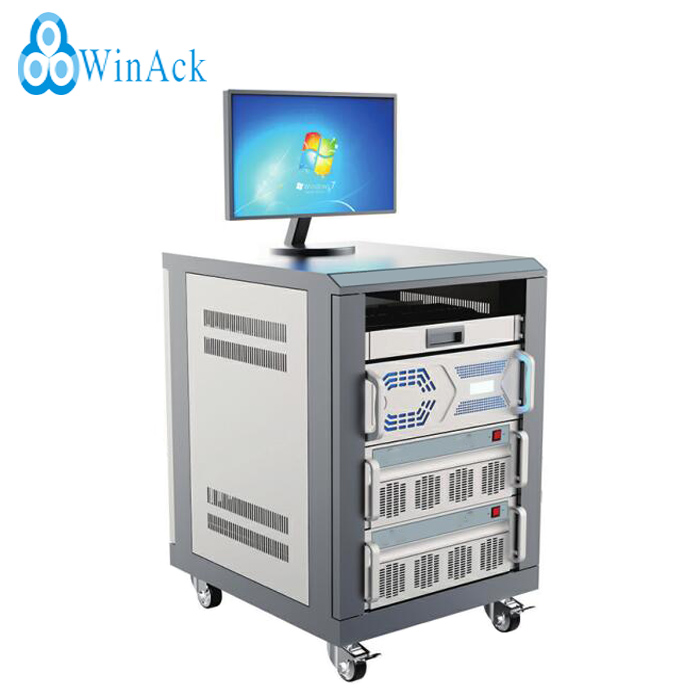

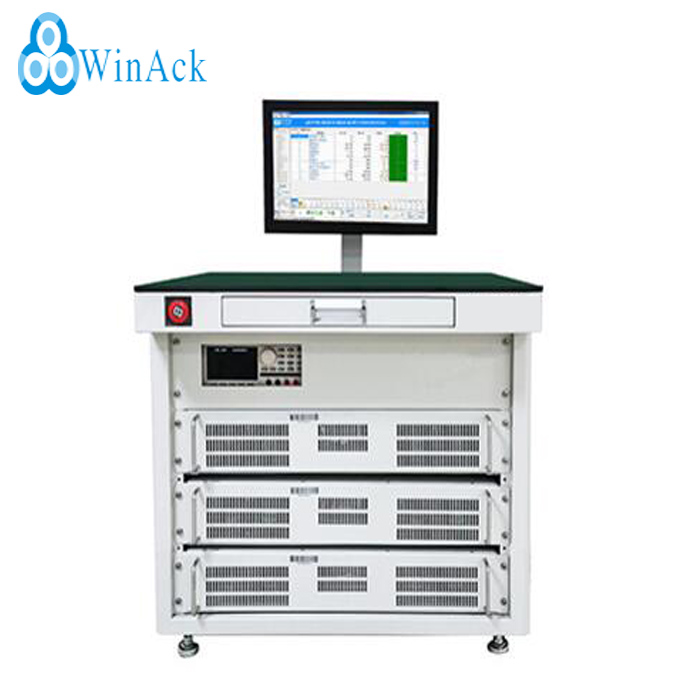

Battery Protection Board Test Equipment/ PCM Tester for Power Lithium Battery Pack

Model: WA-BMS-XY1
Voltage measurement range of the Pack: 1~112V
Current output range of the current source: 0~400A
Warranty: Two years
Description: The battery PCM tester is developed for the test of battery pack protection board, it is also used for downloading, comparing and PCB calibration of battery management IC parameters.
INQUIRY EMAIL

Overview

Suitable for the lithium battery pack of power tools, garden tools, electric bicycles, backup power supplies and other products. Specially developed for basic parameter test and protection function test of lithium battery pack protection board, it is also used for downloading, comparing and PCB calibration of battery management IC parameters.

The power lithium battery pack protection board test equipment can be used with the MES system for test data management and control traceability.

Features

1. Adapt to various types of protection IC.

2. PC software operation, simple and convenient test.

3. Support to expand the battery simulation modules.

4. Test results can be saved: conducive to product quality control, product data traceability (can be used with MES system) and CPK processing.

5. High compatibility, suitable for a variety of charging and discharging solutions with the same or different ports, and has multi-section current protection function test.

6. You can choose the appropriate tester for the number of PCM strings according to your needs.

7. Test the key items of the PCM via multiple battery simulation modules with 0.1-4.6V.

Product description

Basic parameter test items
1	IC current calibration
2	IC voltage calibration
3	Quiescent current consumption test
4	IDR test (Identification resistance test)
5	THR test (Thermal resistor test)
6	ACIR test (Alternating current internal resistance test)
7	No-load voltage test
8	Load voltage test

Protection function test items
1	Cell over-voltage test
2	Battery pack over-voltage test
3	Cell under-voltage test
4	Battery pack under-voltage test
5	Over-temperature test under charging and discharging condition
6	Over-current test under charging and discharging condition
7	Short-circuit protection under discharging condition
8	Pre-charge over-voltage protection
9	Second-level over-voltage protection

Data test
1	Produce information comparison
2	Data Flash comparison
3	SBS comparison
4	I2C communication test
5	SMBus communication test
6	HDQ communication test

Technical Parameters

Index	Parameter
Voltage measurement range of the multiple battery simulation	0.1~4.6V
Voltage measurement range of the Pack	1~112V
Voltage output range of the charger	1~112V
Voltage accuracy	±(0.01%F.S. +1mV)
Current output range of the current source	0~400A
Current accuracy	±(0.05%F.S. +1mA)
