Product description:
The automatic battery sorting machine is mainly used to support the process of sorting and matching the cylindrical cells. It is a necessary machine for battery pack manufacturer for voltage and resistance testing and sorting.
Scope of application:

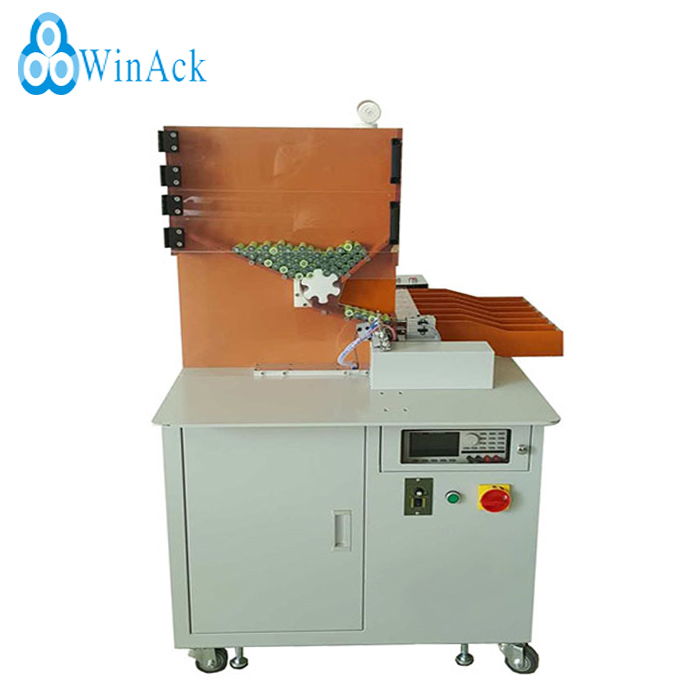

This 6 Channels automatic battery cell sorter is designed to sort cylindrical 18650 or 26650 32650 21700 cells.
Characteristic:
1. Automatic sorting control, fast sorting speed: 5000pcs/ hour, good stability.
2. The machine has a high-precision internal resistance and voltage automatic tester.
3. The battery sorting machine can equip with a computer which can record the data of battery sorting.
4. The hopper can be put into 450~500pcs at one time, easy to refill battery cells during the process.
5. The battery sorting machine can be docked with the automatic 18650 cylindrical battery barley paper sticking machine, thereby further saving labor.
Device parameters
|
Name |
6 channels Automatic Battery Sorting Machine |
|
Model |
WA-AS-6T |
|
Receiving Channel |
5 OK Channels + 1NG Channel |
|
Voltage supply |
220V / 50Hz (or can be customized) |
|
Power |
1600W |
|
Air pressure |
0.4~0.8Mpa |
|
Internal resistance |
Hioki 3561 / HK 3560 |
|
Measurement of internal resistance |
Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ |
|
Measurement of internal pressure |
Range: 0~6V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV |
|
Production efficiency |
Without code sweeping, about 5000pcs/h |
|
With code sweeping, about 3000pcs/h |
|
|
Control device |
7.5 inch Touch screen + PLC programmer |
|
Sorting speed |
80 PPM |
|
Size(L*M*H) |
1100*930*1390mm |
|
Weight |
About 110KG |
