Cylindrical Battery Automatic Sorting Machine

20 channels Automatic Battery Sorting Machine for 18650 Battery Pack Assembly Factory

20 channels Automatic Battery Sorting Machine for 18650 Battery Pack Assembly Factory

Model: WA-AS-20C
Sorting channel: 20 channels
Production efficiency: 6500~6800pcs/hour
Internal resistance: Hioki 3561 / HOPETECH HK 3561
Description: The automatic battery sorter is suitable for automatic battery sorting, has a high-precision internal resistance and voltage automatic test system. Fast sorting speed: 6500~6800pcs/ hour, good stabili
INQUIRY EMAIL

Product description:

The product is suitable for automatic battery sorting, has a high-precision internal resistance and voltage automatic test system. Fast sorting speed: 6500~6800 pcs/ hour, good stability.

Scope of application:

Standard: 18650 cylindrical battery automatic sorting machine for battery pack assembly production line

Customizable: 26650 lithium battery cell testing machine / battery automatic sorter

Customizable: 21700 automatic battery voltage resistance sorting machine for battery pack manufacturer

Customizable: 32650 li-ion cylindrical battery cells sorting machine

Characteristic:

1. Fast sorting speed: 6500~6800 pcs/ hour, good stability.

2. This product has a high-precision internal resistance and voltage automatic test system.

3. The test data is stored in batches, with its own save function.

4. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

5. The bar code corresponds to the test voltage internal resistance data.

6. The battery sorting machine can be docked with the automatic 18650 27100 cylindrical lithium battery labeling insulation paper sticking/pasting machine, thereby further saving labor.

Device parameters

Name	20 channels Automatic Battery Sorting Machine
Model	WA-AS-20C
Voltage supply	220V / 50Hz (or can be customized)
Power Consumption	≤3KW
Air pressure	0.5~0.8Mpa
Internal resistance	Hioki 3561 / HK 3561
Measurement of internal resistance	Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ
Measurement of internal pressure	Range: 0~10V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV
Production efficiency	6500~6800PCS/Hour
Control device	21 inch Monitor

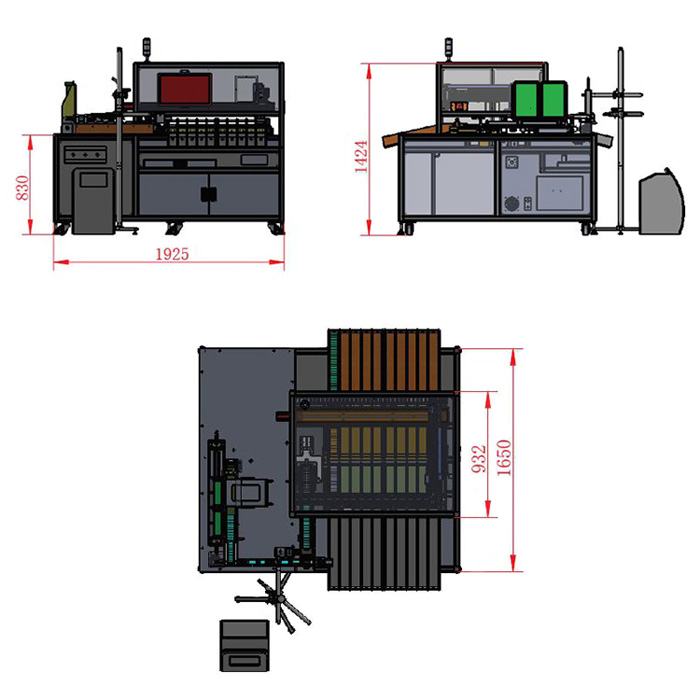

Size(LWH)	193016501500mm
Weight	About 400kg

Equipment configuration

Serial number	Spare parts	Brand
1	Air cylinder	AirTAC / SMC / CKD
2	Solenoid value	AirTAC / SMC / CKD
3	Linear guide rail	HIWIN / TPI
4	Electric relay	OMRON
5	PLC	OMRON / TouchWin
6	Inductorium	OMRON / SUNX
7	Stepper motor	Leadshine/ Inovance
8	Servo motor	Fuji Electric / Panasonic
9	Tester	Hioki3561 / HK 3561
10	Code reader	KEYENCE
