Product description:

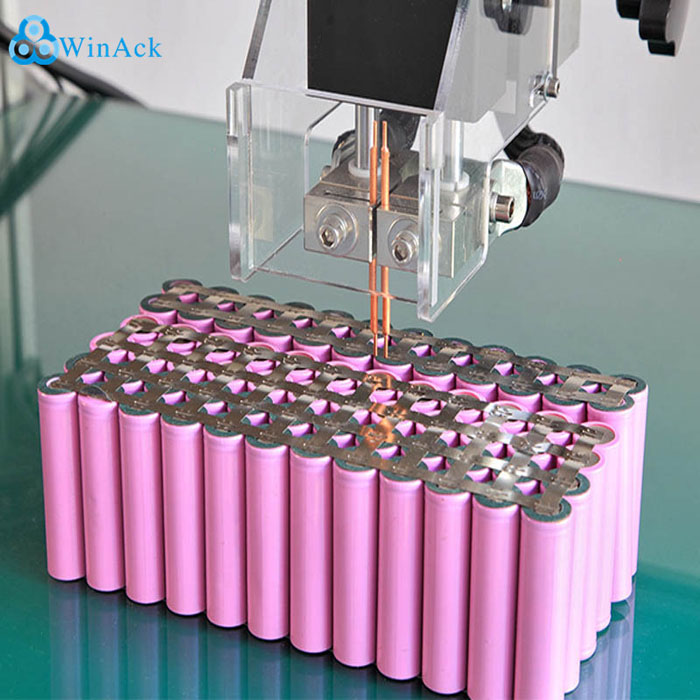

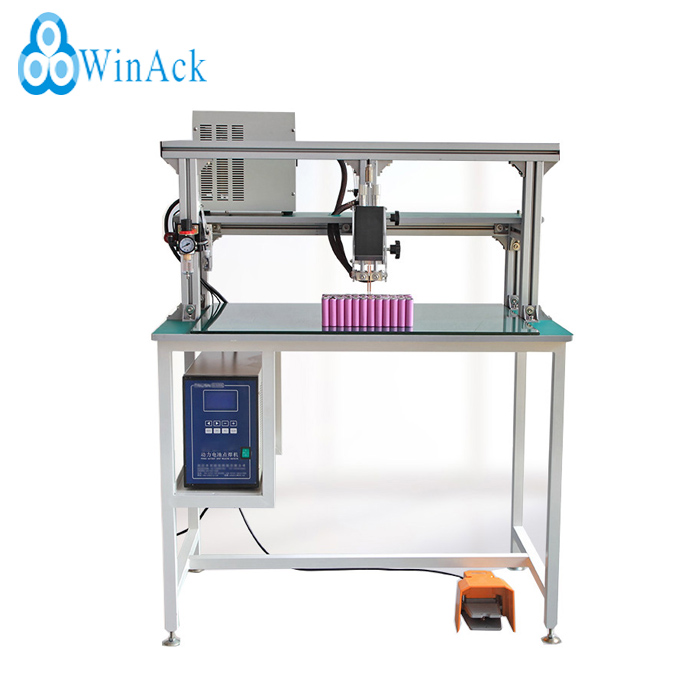

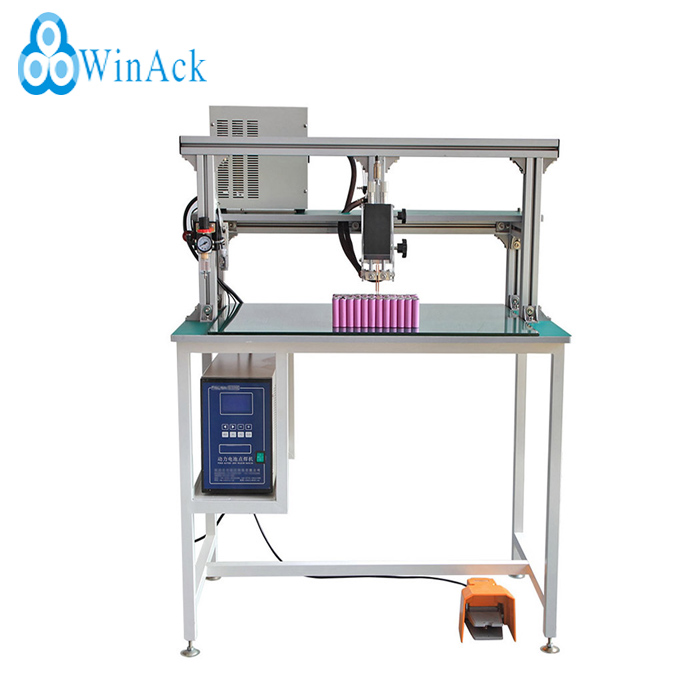

The machine is suitable for 21700 battery pack spot welding, it is very easy to operate, it can weld with high speed and good effect. Supports single spot welding and continuous spot welding modes. It adopts modular design, selects imported components, and is equipped with the company's advanced microcomputer controller.
Scope of application:

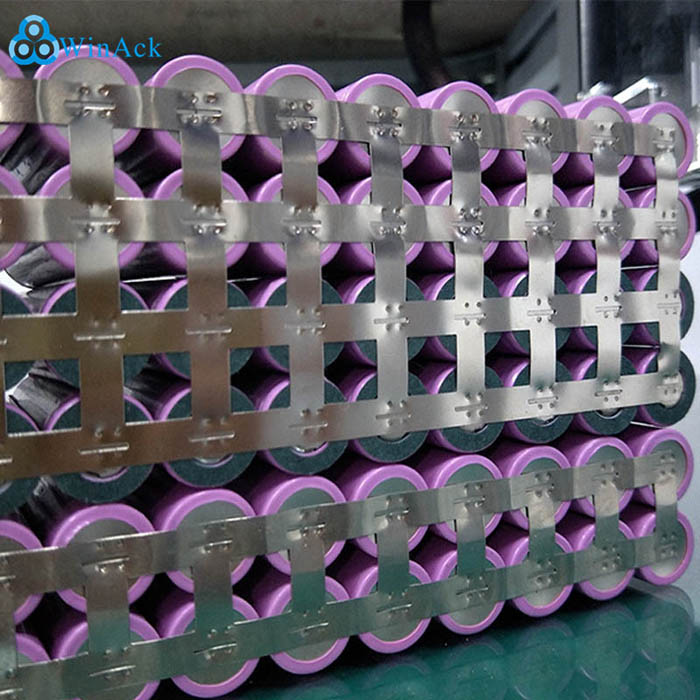

AC Plus Pneumatic spot welder for battery pack welding, it is suitable for welding 18650, 26650, 21700 battery packs, such as garden tool battery, energy storage battery , street lamp battery, electric motorcycle battery.…
AC Pneumatic Spot Welding Machine Characteristic:
1. Digital welding parameter setting panel, simple and clear operation, convenient and fast.
2. The welding pulse width is adjustable, the welding spatter is small, and the welding point does not change color.
3. Acousto-optic alarm for abnormal current to prevent false welding.
4. Available welding modes are: single spot welding and continuous spot welding.
Device parameters
|
Name |
Spot Welding Machine for Battery pack production line |
|
Model |
WA-SW-18B |
|
Power supply |
220V±10% / 50/60Hz |
|
Rated power |
300W |
|
Maximum Power of Transformer |
30KVA |
|
Maximum output current |
5000A |
|
Rated capacity |
250J |
|
Welding voltage adjustment |
50~350VDC |
|
Welding time |
1.0ms-20.0ms, accuracy: 0.1ms |
|
Welding pulse frequency |
Secondary |
|
Welding needle configuration |
1.6mm or 3mm or 6mm |
|
Debugging Spacing of Welding Needles |
0-20mm |
|
Effective travel of working platform |
800mm*500mm |
|
Welding speed |
0.8~1.2 S/PCS |
|
Planar Nickel Sheet Thickness |
0.08-0.2mm Nickel-plated steel |
|
Control mode |
Fixed voltage control |
|
Parameter store |
Ten group |
|
Size(L*W*H) |
1000*600*1310mm |
|
Overall weight |
100KG |
