Scope of application:

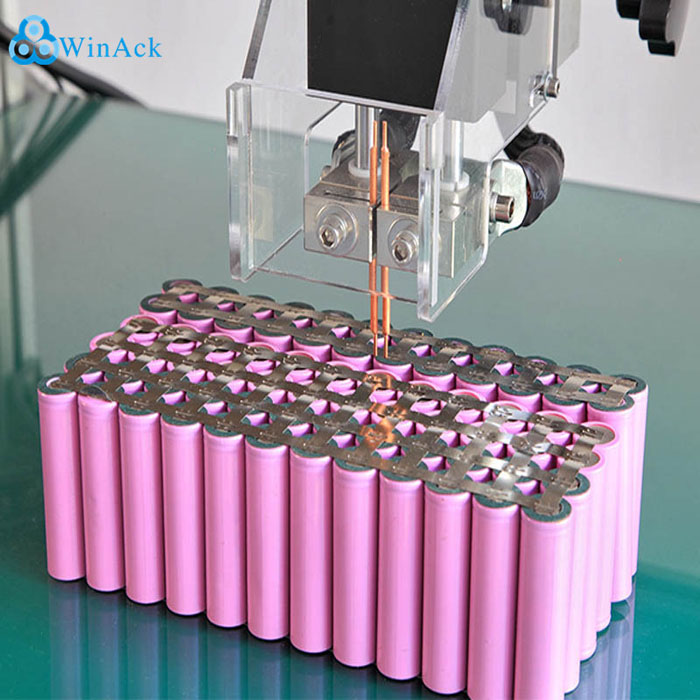

Battery spot welding machine for battery pack welding, it is suitable for welding 18650, 26650, 21700 ... battery packs, such as electric bicycle, scooter and electric car battery packs, garden tool battery, energy storage battery , street light battery, car start and stop battery.…
Cylindrical Cells Spot Welding Machine Characteristic:
1. The welding current rises rapidly, and high-quality welding is achieved in a short time.
2. The welding pulse width is adjustable, the welding spatter is small, and the welding point does not change color.
3. There are three control modes: fixed current control, fixed voltage control, fixed current and voltage control.
4. Dynamic real-time monitoring of welding voltage, current, power and resistance wave forms.
Device parameters
|
Name |

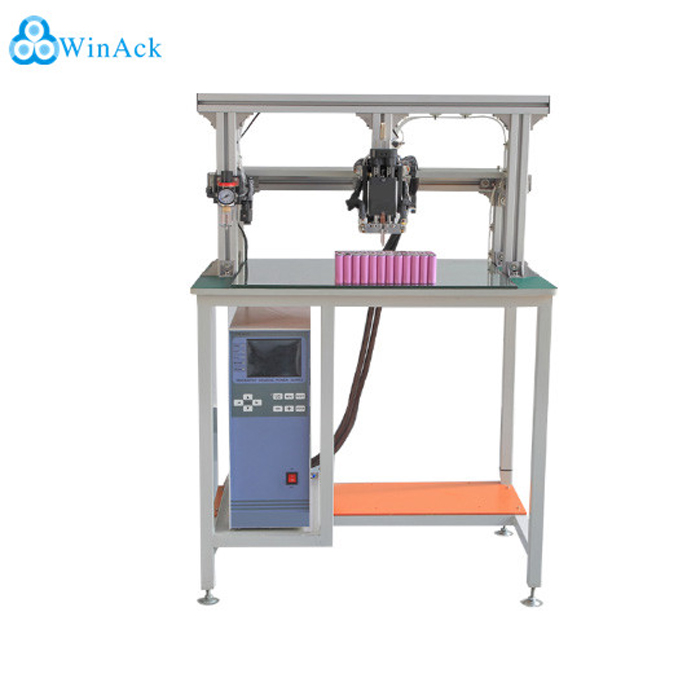

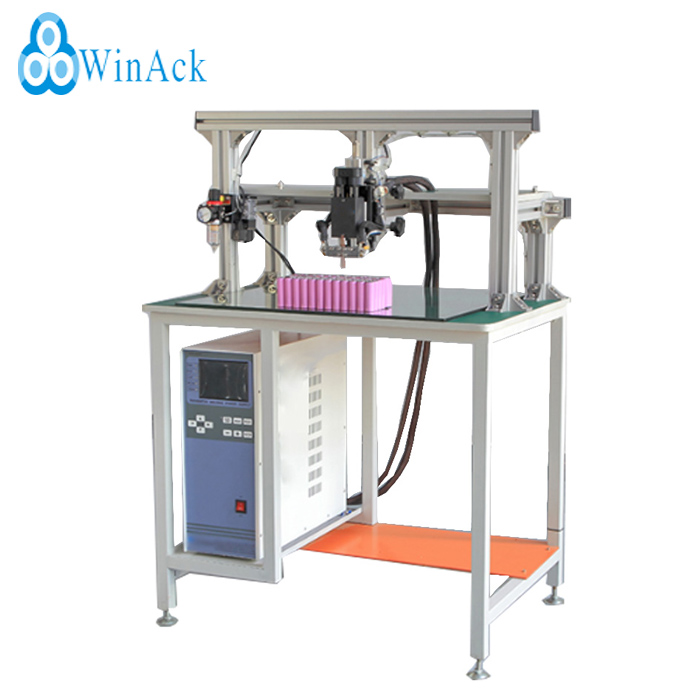

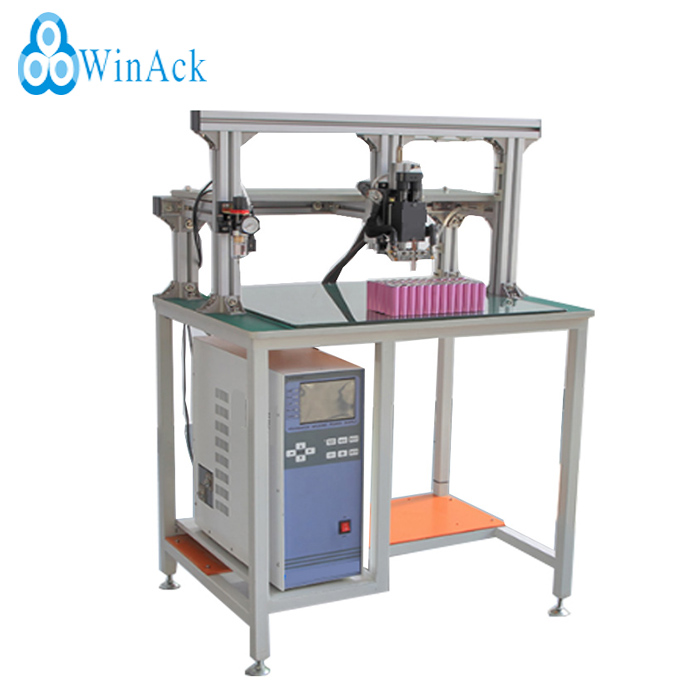

Transistor Spot Welding Machine for Battery Pack Production Line |
|
Model |
WA-SW-60B |
|
Power supply |
220V±10%/50Hz±10% |
|
Rated power |
425W |
|
Maximum output current |
6000A |
|
Current waveform |
+/- , -/+, +/+, -/- |
|
Setting range of current |
0.6~6.0KA |
|
Setting range of voltage |
0.1~9.0V |
|
Electric current monitoring range |
0.00~9.99KA |
|
Voltage monitoring range |
0.00~9.99V |
|
On-line detection function |
Have |
|
Control mode |
A: fixed current control B: fixed voltage control C: fixed current and voltage control |
|
Dot count |
0~99999 |
|
Repeated power-on speed |
Use Curve Rate for Reference to Machine Type |
|
Display Language |
Chinese / English |
|
Service temperature |
0~40℃ |
|
Humidity |
＜ 90% (non-condensing) |
|
Size(L*W*H) |
182×502×479mm |
|
Overall weight |
28KG |
