Product description:
The intermediate frequency spot welding machine is advanced welding equipment and is widely used in welding of various products, such as welding battery lead, wire terminal, temperature sensor and hardware pin… The welding transformer has a small volume and large output energy. Integrated transformer welding tongs have more advantages.
Scope of application:

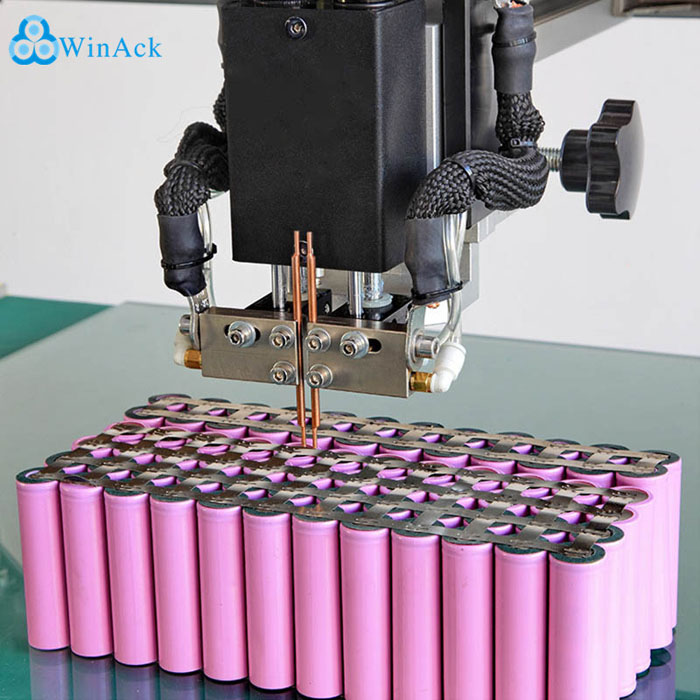

Metal nickel medium frequency butt welding machine is suitable for welding battery lead, wire terminal, temperature sensor and hardware pin.…
Inverter Resistance Welder Characteristic:
1. The welding parameter system adopts digital setting, and the operation is clear and simple.
2. Ten groups of parameters are stored to facilitate various welding switching.
3. Pre-charge test function can be used to distinguish the welding path status.
4. Soft switching technology is used to reduce the losses and electromagnetic interference of the reverse bridge.
5. Sound and light alarm for abnormal current to prevent false welding.

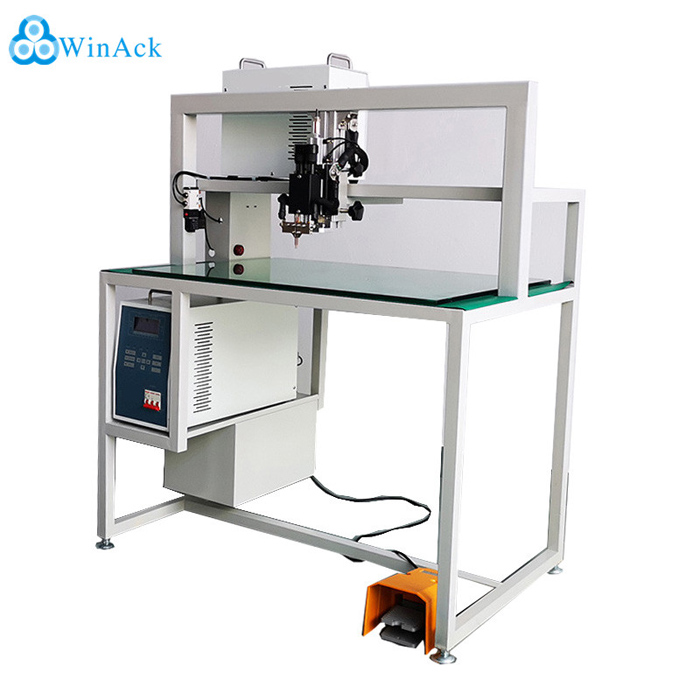

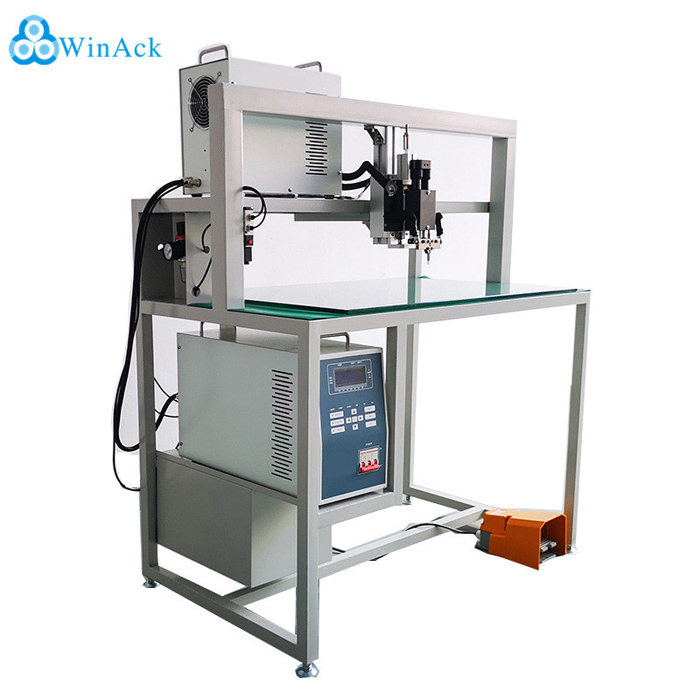

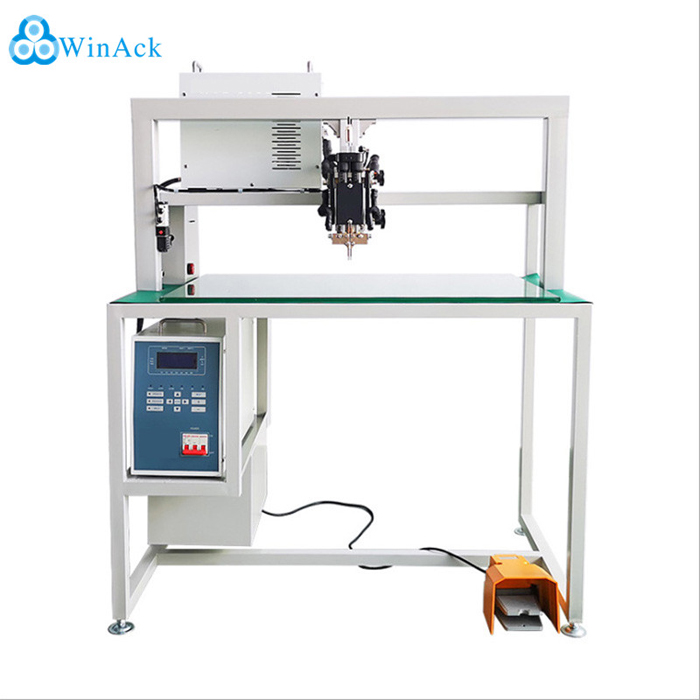

Device parameters
|
Name |
Spot Welder for Battery Pack Production Line |
|
Model |
WA-SW-50D |
|
Power supply |
380V±10% / 50/60Hz |
|
Maximum Power of Transformer |
10KVA |
|
Output voltage |
9V |
|
Inverter frequency |
4KHZ |
|
Adjustment range of welding head height |
10-150mm |
|
Welding cycle time |
1 Paragraph |
|
Welding time |
1.0ms-20.0ms, accuracy:0.1ms |
|
Number of welding pulses |
2 |
|
Welding needle configuration |
1.6mm or 3mm or 6mm |
|
Debugging spacing of welding needles |
0-20mm |
|
Welding speed |
0.5~0.8 S/PCS |
|
Thickness of planar nickel sheet |
0.08-0.2mm Nickel-plated steel |
|
Thickness of bump nickel sheet |
0.2-0.5mm Nickel-plated steel |
|
Control mode |
Fixed current control |
|
Welding method |
Single point welding |
|
Cooling mode |
Water-cooled circulatory system（Optional） |
|
Size(L*W*H) |
1000*600*1310mm |
|
Overall weight |
110KG |
