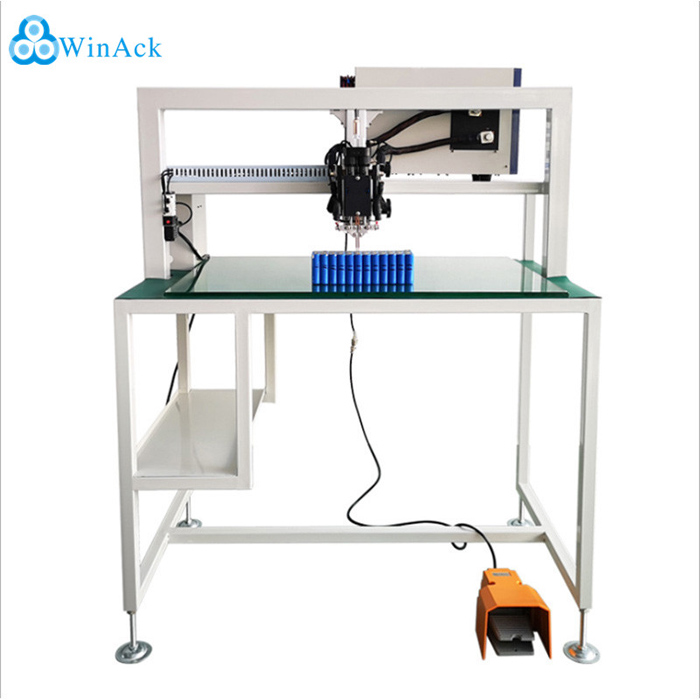

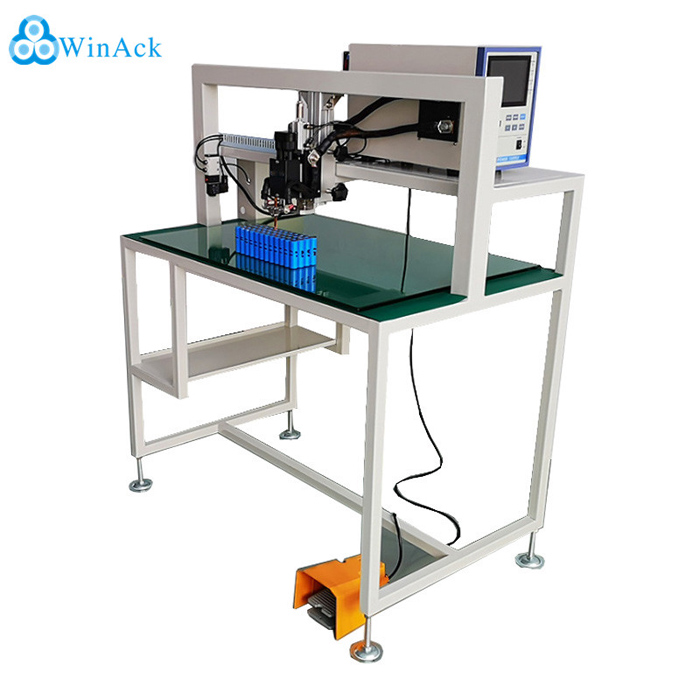

Electric Car E-Bike Lithium Battery Spot Welder for 18650 Battery Pack 220V 6000A

  • Model: WA-SW-60A
  • Rated power: 425W
  • Maximum output current: 6000A
  • Current waveform: +/- , -/+, +/+, -/-
  • Description: The battery spot welder is suitable for 18650 battery pack spot welding, it can weld with high speed and good effect.
  • INQUIRY   EMAIL

Product description:

The machine is suitable for 21700 battery pack spot welding in the factory, it is very easy to operate, it can weld with high speed and good effect. It adopts modular design, selects imported components, and is equipped with the company's advanced microcomputer controller, and cooperates with two sets of analog / digital conversion circuits to change the power supply voltage. Temperature changes are automatically controlled to maintain a stable output.


Scope of application:

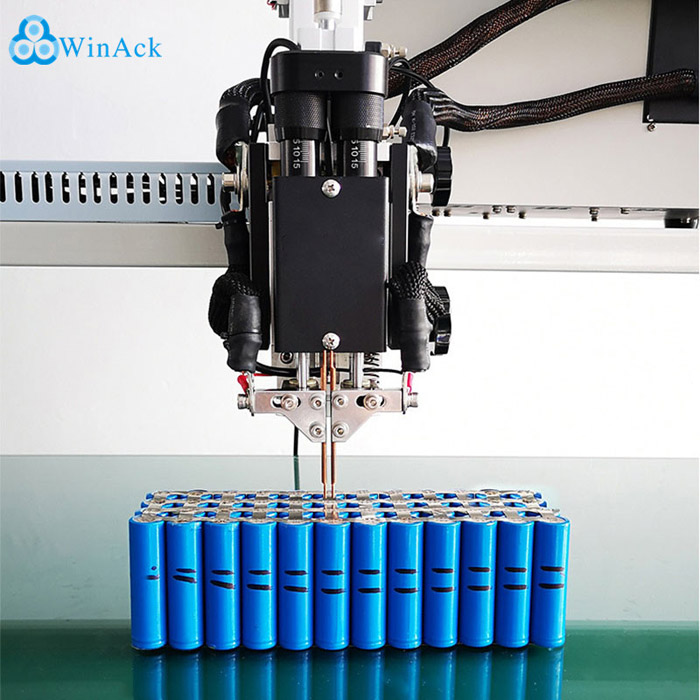

E-Bike lithium battery spot welder for battery pack welding, it is suitable for welding 18650, 26650, 21700 battery packs, such as garden tool battery, energy storage battery , street light battery, car start and stop battery.…


Electric Car Battery Spot Welding Machine Characteristic:

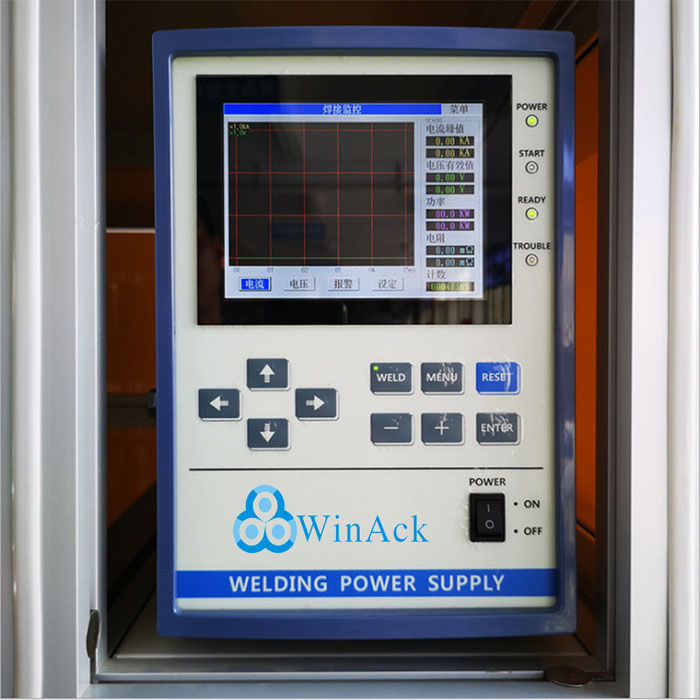

1. Digital welding parameter setting panel, simple and clear operation, convenient and fast.

2. The welding pulse width is adjustable, the welding spatter is small, and the welding point does not change color.

3. There are three control modes: fixed current control, fixed voltage control, fixed current and voltage control.

4. Dynamic real-time monitoring of welding voltage, current, power and resistance waveforms.


Device parameters

Name

Transistor Automatic Spot Welding Machine for Battery Pack Production Line

Model

WA-SW-60A

Power supply

220V±10%/50Hz±10%

Rated power

425W

Maximum output current

6000A

Current waveform

+/- , -/+, +/+, -/-

Setting range of current

0.6~6.0KA

Setting range of voltage

0.1~9.0V

Electric current monitoring range

0.00~9.99KA

Voltage monitoring range

0.00~9.99V

On-line detection function

Have

Control mode

A: fixed current control

B: fixed voltage control

C: fixed current and voltage control

Dot count

0~99999

Repeated power-on speed

Use Curve Rate for Reference to Machine Type

Display Language

Chinese / English

Service temperature

0~40

Humidity

90% (non-condensing)

Size(L*W*H)

190×502×479mm

Overall weight

28KG


Lithium-ion Battery Spot Welder for 18650 battery pack assembly

Spot Welding Machine for 18650 Battery Pack
