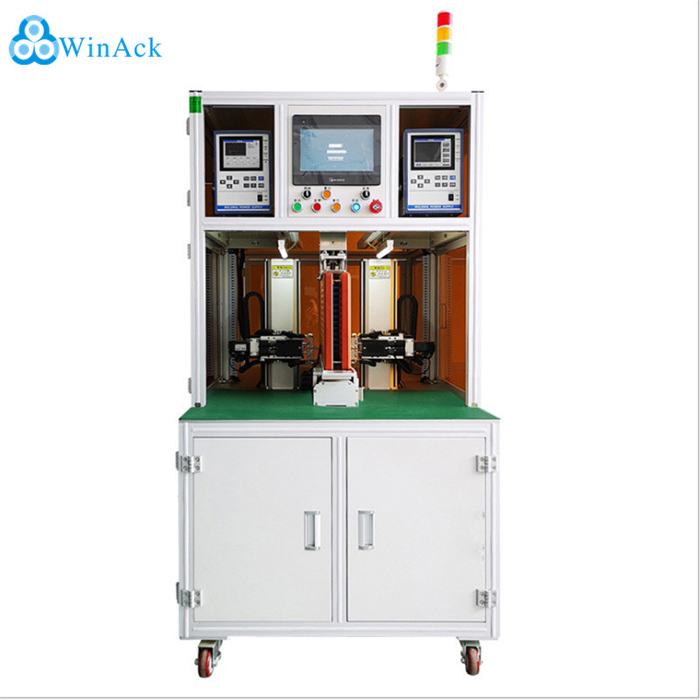

Lithium Battery Spot Welder Automatic CNC Welding Machine for 18650 Battery Pack line

Product description:

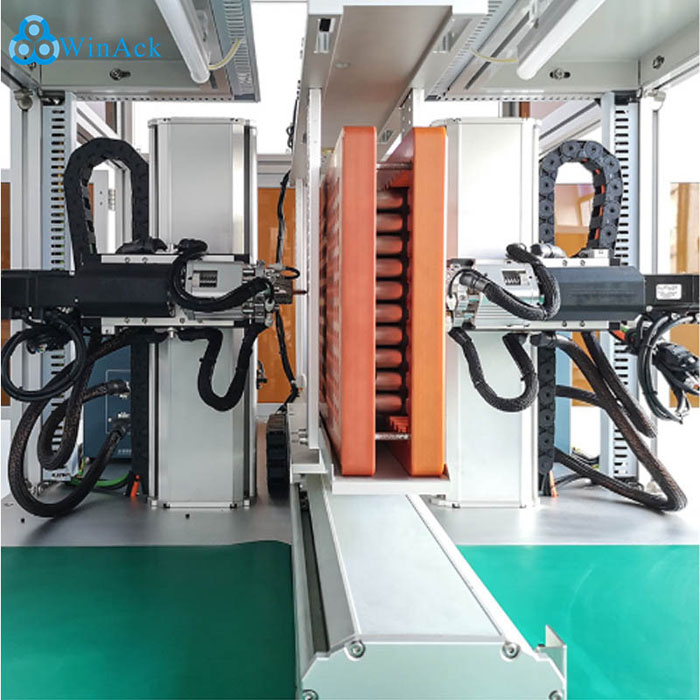

The machine is suitable for automatic double-sides spot welding of nickel strips in 18650/ 26650/ 21700/ 32650 cylindrical battery pack, the highly automated human-machine interface makes it so easy to operate. Programming is simple, and it supports any point programming and array programming. Through manual loading and simple settings, it can weld both sides together with high speed and good effect, and to ensure that the welding tension band or nickel between the battery and the nickel strips is greater than 30N.

Scope of application:

Automatic 18650/ 21700/ 26650/ 32650 cells battery pack double-sides spot welding machine for battery pack assembly, it is suitable for electric bicycle batteries , power battery and energy storage battery…

Automatic Cylindrical Cells Double Sides Spot Welding Machine Characteristic:

1. One key calibration function can be used to calibrate the overall deviation of the solder joint. This function can be used to correct spot position deviations due to replacement of welding pins or other reasons.

2. The spot welding is more efficient, and the double-sides spot welder can reach 3500 pcs per hour.

3. Support breakpoint startup, automatic startup and manual startup mode conversion.

4. The core accessories are imported fromJapanandTaiwan. The accuracy, stability and service life of the whole machine are more than twice that of other domestic accessories.

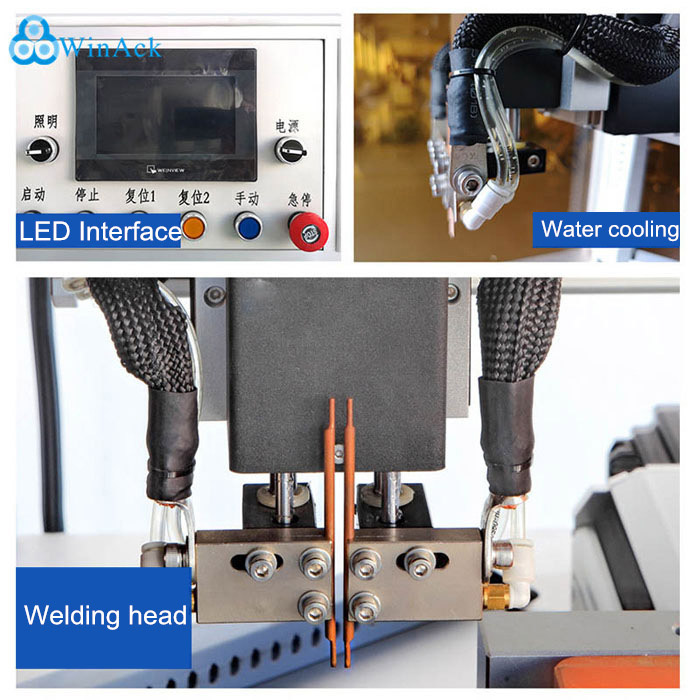

5. Welding needle compensation function Water-cooled heat dissipation system, reducing the loss of welding needles.

6. We can provide different welding machines according to the different requirements of customers to effectively meet the needs of customers.

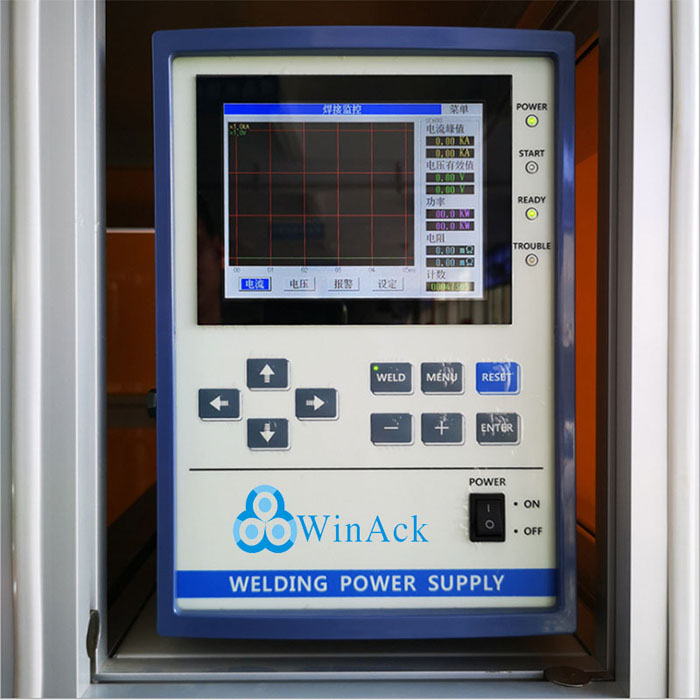

7. Our own welding current monitoring system can monitor the welding current in real time, effectively solving the problems of virtual welding and missing welding.

Device parameters

Equipment configuration
