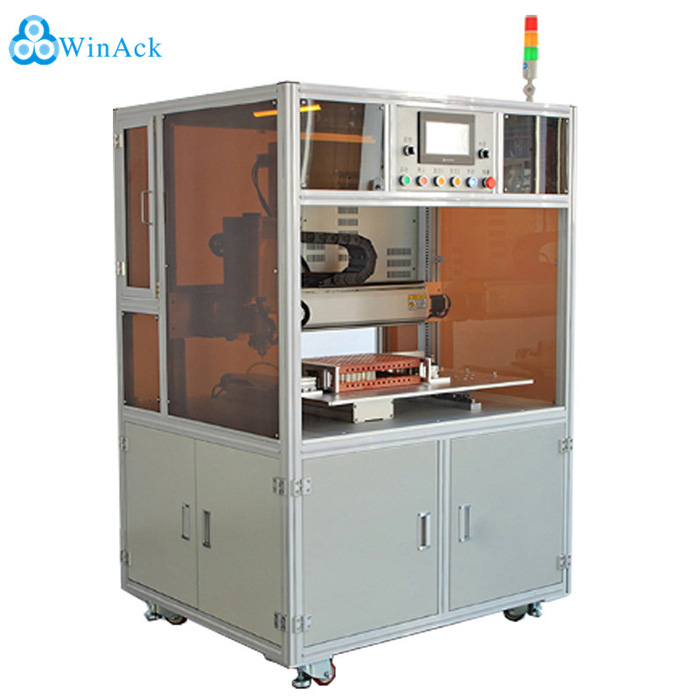

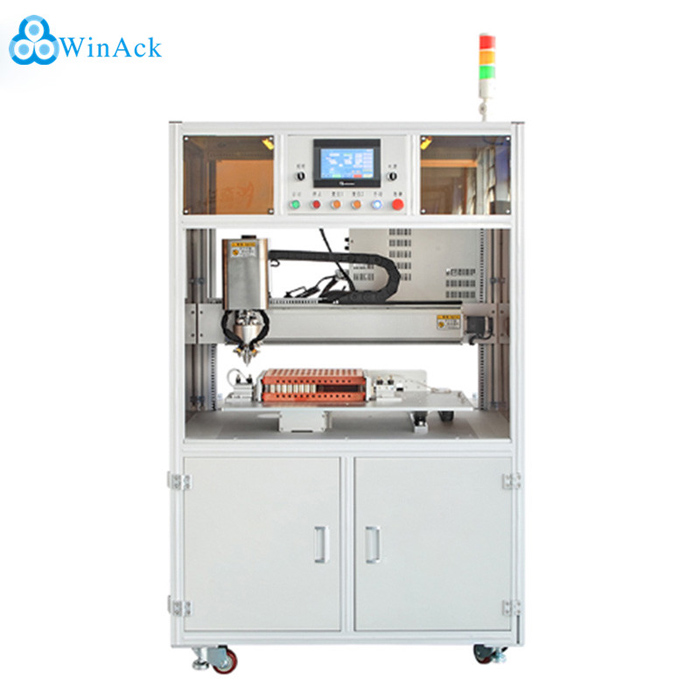

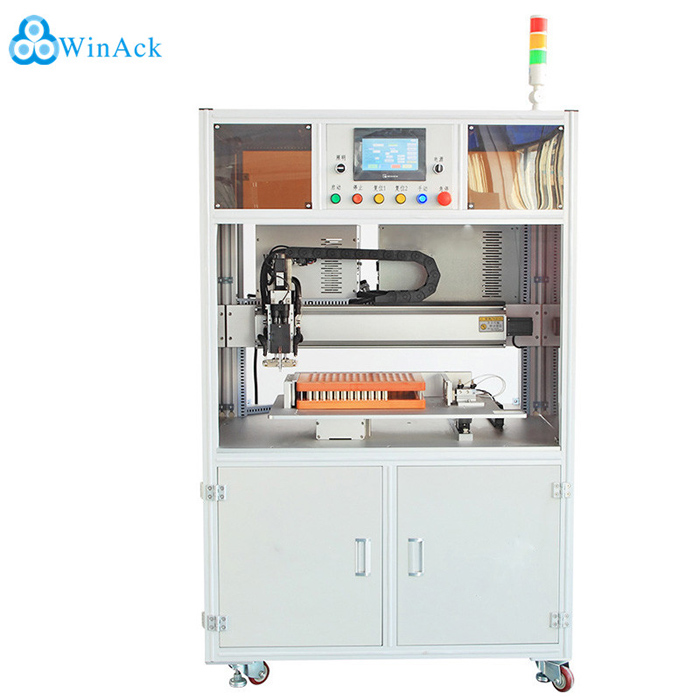

Single-side Automatic Rotary Numerical Control Spot Welding Machine Tab Welder for Cylindrical Battery Pack line

Product description:

This machine is suitable for automatic spot welding of 18650/21700/26650/32650 cylindrical battery pack. It can be welded on one side at high speed. The effect is good. The highly automated human-machine interface makes it very easy to operate. By manual loading and simple setting, the welding process of the battery pack can be completed, and the welding tension band or nickel between the battery and the nickel bar is greater than 30N.

Scope of application:

Battery pack production line automatic 18650/26650/32650 single-sided spot welder for battery pack, suitable for energy storage battery, electric bicycle battery, power battery...

Industry Automatic CNC Spot Welding Machine for 18650 Battery Pack Characteristic:

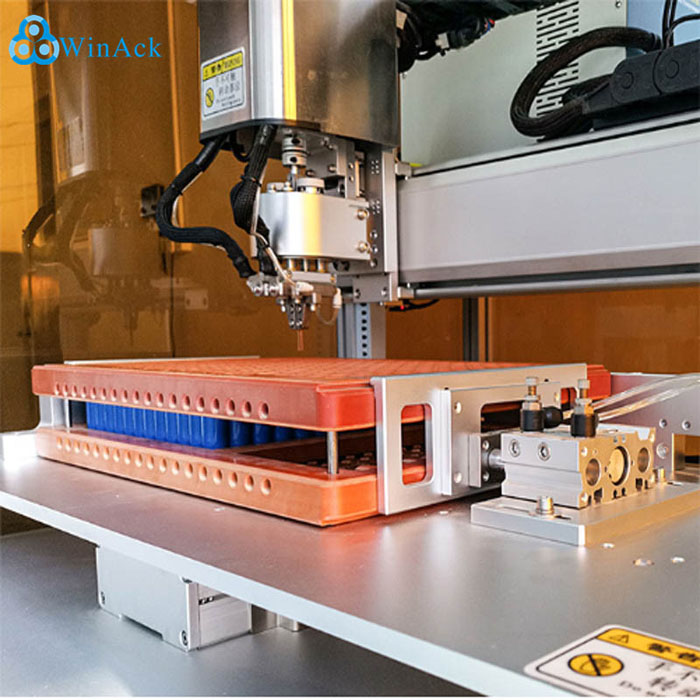

1. The welding head rotation design is a solution that can effectively solve the problem of the adhesion of the needle on the battery nickel plate and the pure nickel plate.

2. Simple programming, using motion controller to support array and non-array fast programming to simplify spot welding operation of battery pack.

3. One-button calibration function can calibrate the total displacement of the solder joint, and also can adjust the solder joint displacement caused by replacing the welding pin or other reasons.

4. Support breakpoint start, automatic start and manual start mode conversion.

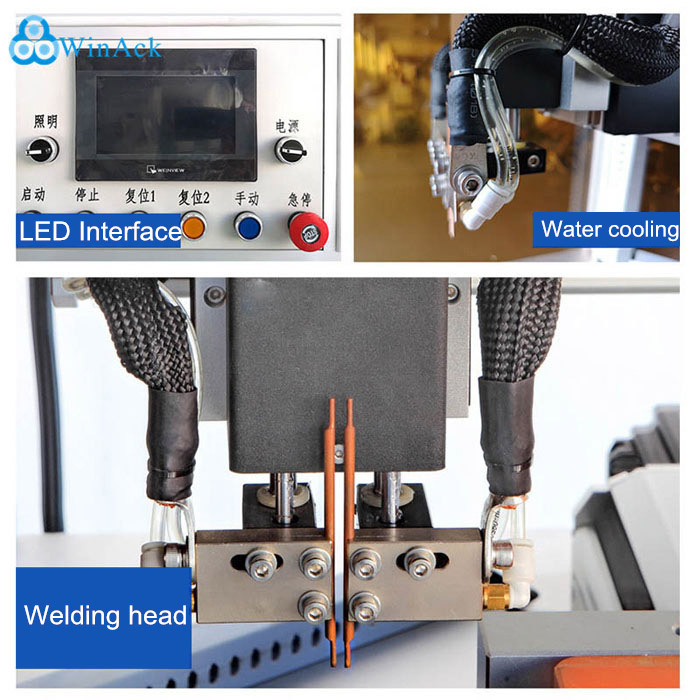

5. Welding pin compensation function, the water-cooled heat dissipation system reduces the loss of welding pins.

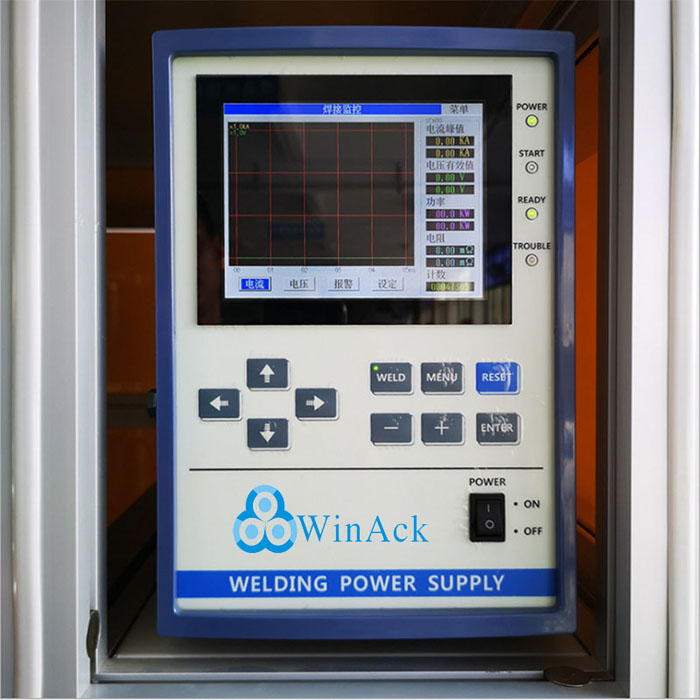

6. Stable control system, our own welding current monitoring system can monitor the welding current in real time, effectively solving the problem of false welding and missing welding.

Device parameters

Equipment configuration
