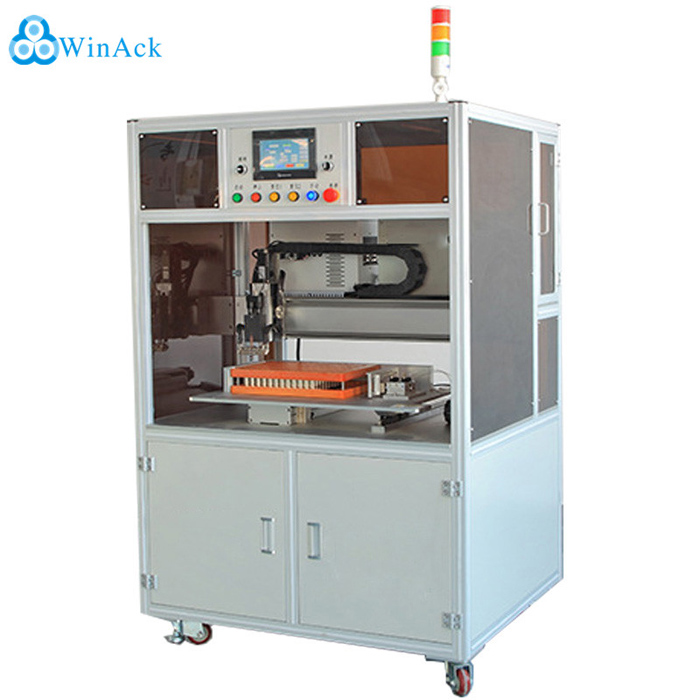

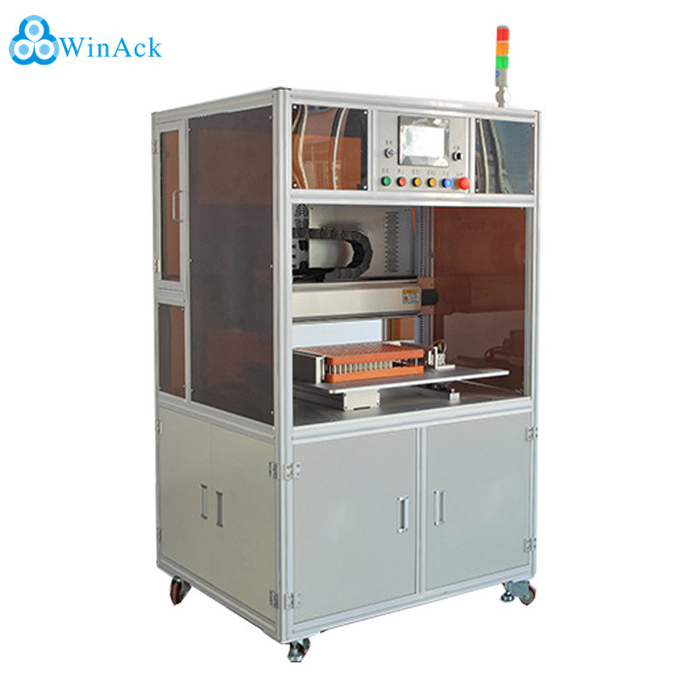

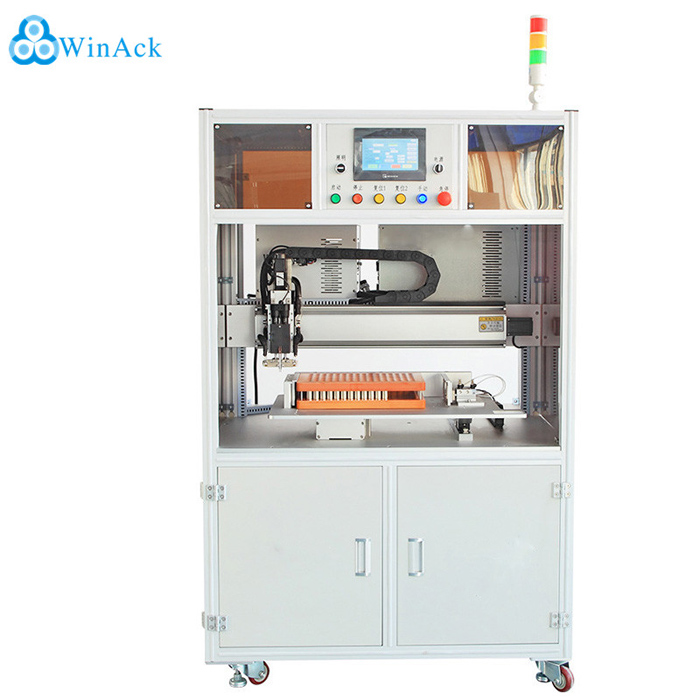

Automatic Battery Tab Spot Welder Machine for 18650 Battery Pack Welding Line

Product description:

The machine is suitable for 18650/ 21700/ 26650/ 32650 cylindrical battery pack automatic spot welding, it can weld single-side with high speed and good effect, the highly automated human-machine interface makes it very easy to operate. Through manual loading and simple settings, the battery pack welding process can be completed, and to ensure that the welding tension band or nickel between the battery and the nickel strips is greater than 30N.

Scope of application:

Automatic 18650 / 26650 / 32650 battery pack single-side spot welding machine for battery pack production line, it is suitable for energy storage battery, electric bicycle batteries, power battery…

Portable Aluminum Spot Welding Machine for Lithium Battery Characteristic:

1. Programming is simple, using motion controllers to support array and non-array rapid programming to simplify battery pack spot welding operations.

2. You can set the upper and lower limits of the current to determine whether the welding quality is good and suitable for the welding automation platform.

3. Support breakpoint startup, automatic startup and manual startup mode conversion.

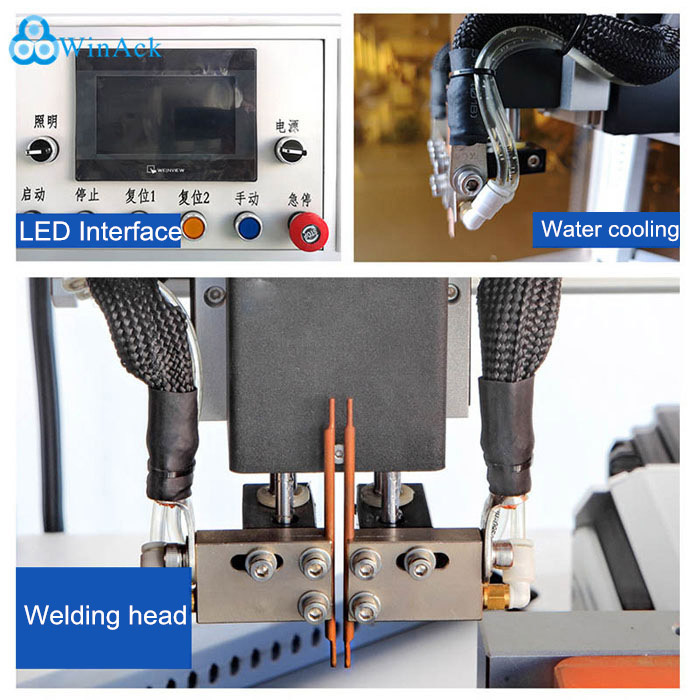

4. Welding needle compensation function Water-cooled heat dissipation system, reducing the loss of welding needles.

5. Our own welding current monitoring system can monitor the welding current in real time, effectively solving the problem of false welding and missing welding.

Device parameters

Equipment configuration
