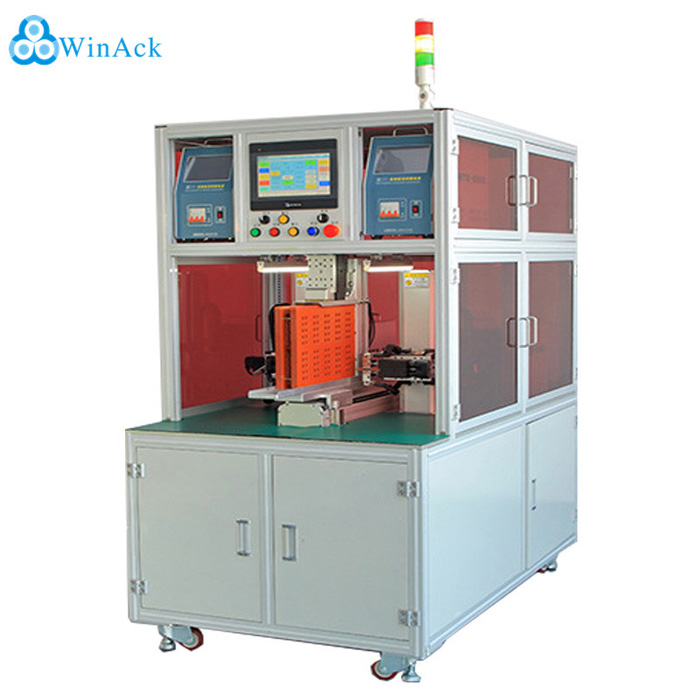

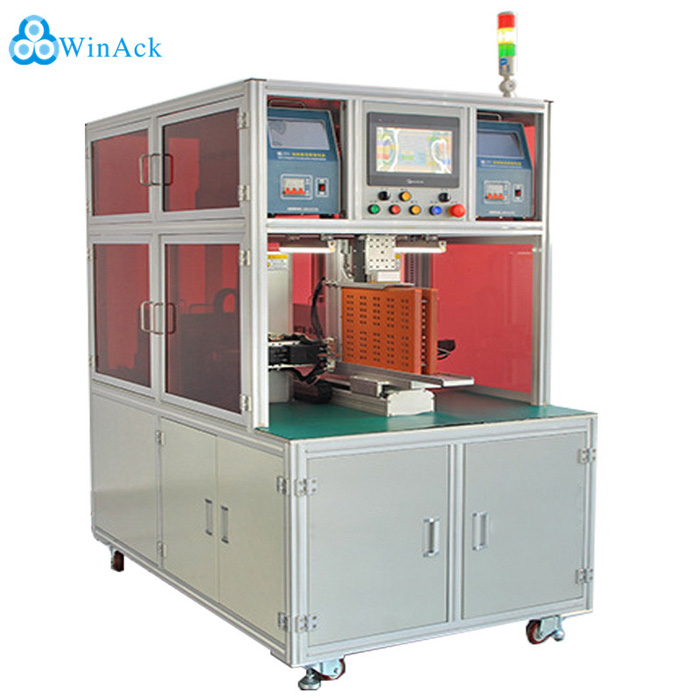

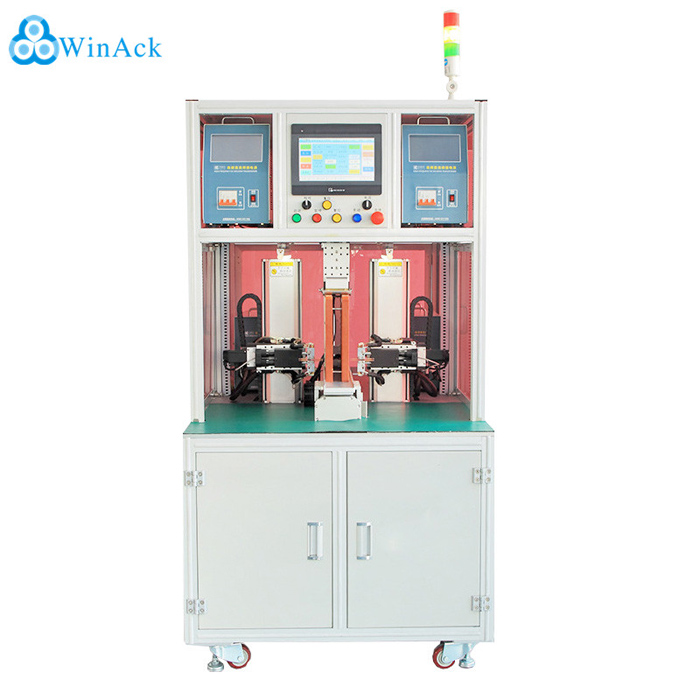

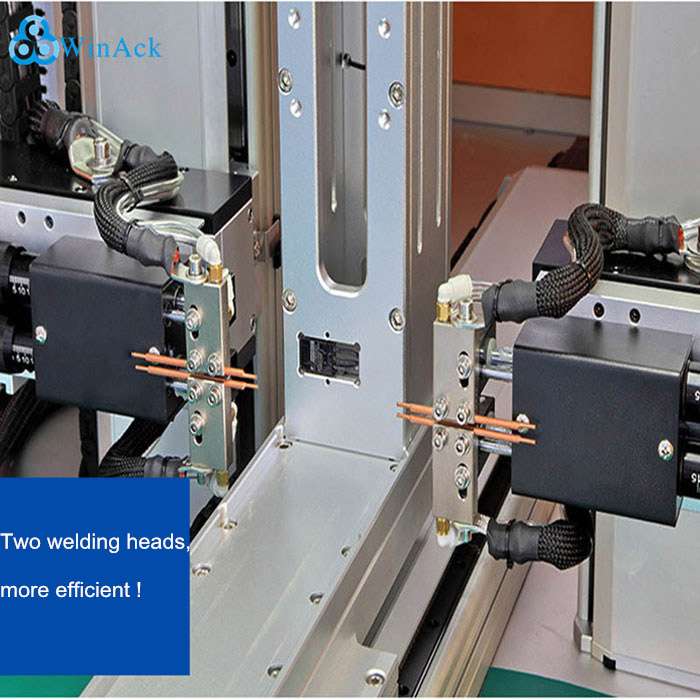

CNC Automatic Welder Battery Pack Spot Welding Machine with Two Welding Heads for Lithium-ion Battery

Product description:

The machine is suitable for CNC automatic welder battery pack double-sides spot welding of nickel strips in cylindrical battery pack, the highly automated human-machine interface makes it very easy to operate. Through manual loading and simple settings, it can weld both sides together with high speed and good effect, and to ensure that the welding tension band or nickel between the battery and the nickel strips is greater than 30N.

Scope of application:

Automatic 18650/ 21700/ 26650/ 32650 cylindrical battery pack double-sides spot welding machine for battery pack production line, it is suitable for power battery, electric bicycle batteries, energy storage battery…

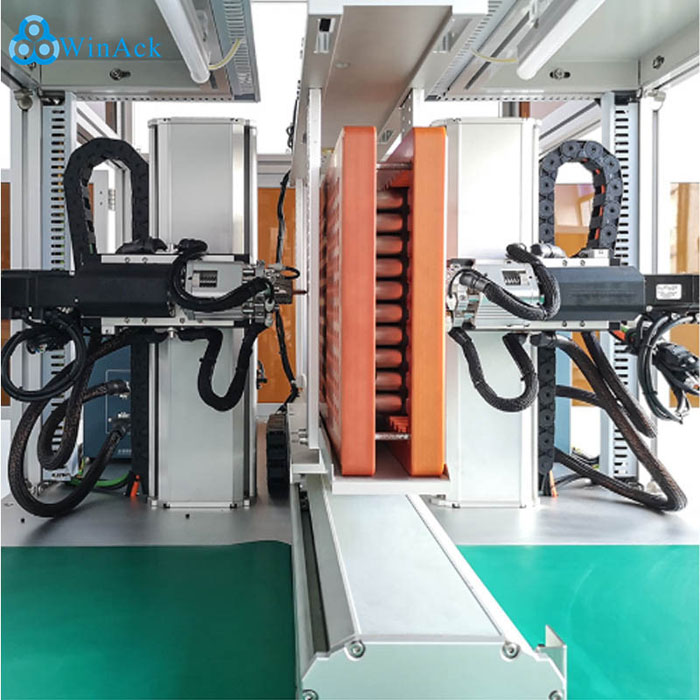

CNC Automatic 18650 Battery Cells double-sides Spot Welding Machine Characteristic:

1. One-button calibration function can be used to calibrate the overall deviation of the solder joint. This function can be used to correct spot position deviations due to replacement of welding pins or other reasons.

2. After the fault is cleared, the automatic alarm and stop function of welding can continue spot welding.

3. Support breakpoint startup, automatic startup and manual startup mode conversion.

4. The machine has the function of power-off or continuous transmission of breakpoints and the spot welding position can be adjusted manually.

5. Welding needle compensation function Water-cooled heat dissipation system, reducing the loss of welding needles.

6. We can provide different welding machines according to the different requirements of customers to effectively meet the needs of customers.

7. Our own welding current monitoring system can monitor the welding current in real time, effectively solving the problems of virtual welding and missing welding.

Device parameters

Equipment configuration
