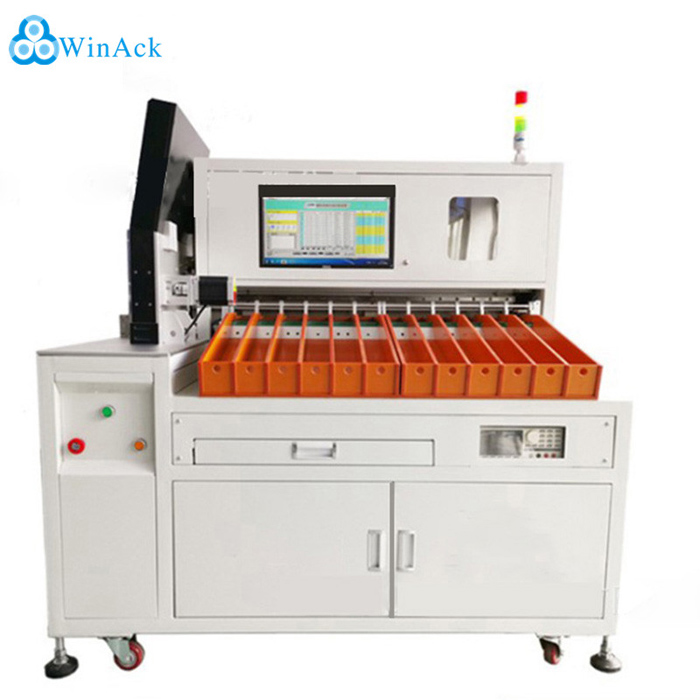

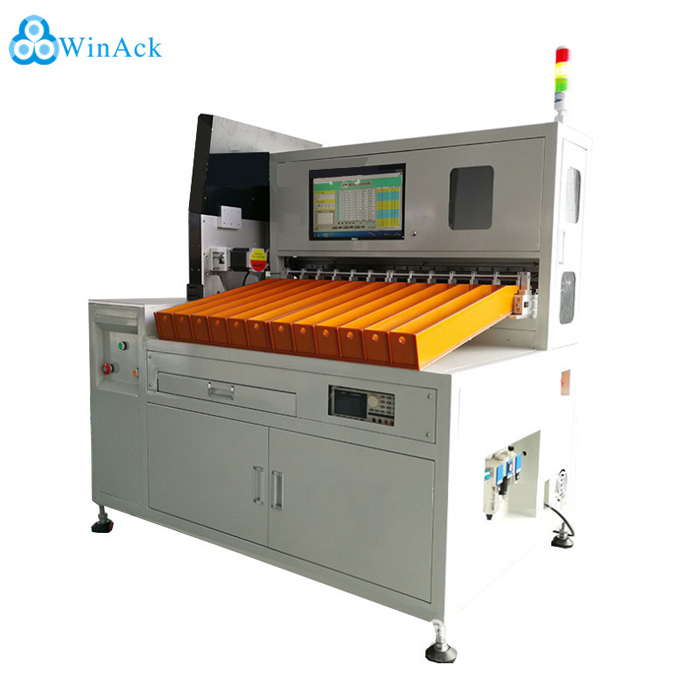

Cylindrical Battery Automatic Sorting Machine

Battery Sorting Machine / Battery Cell Testing Tester Machine

Model: WA-AS-12C
Sorting channel: 12 channels
Production efficiency: 5500pcs/hour
Warranty: Two years
Description: The equipment is suitable for automatic battery sorting/testing for battery pack production factory, the highly automated human-machine interface makes it very very easy to operate.
INQUIRY EMAIL

Scope of application:

Standard: 18650 li-ion battery automatic sorting machine for battery pack manufacturer

Customizable: 26650 lithium battery cell testing tester equipment / battery sorting machine

Customizable: 21700 automatic battery voltage resistance sorter sorting machine for battery pack line

Customizable: 32650 cylindrical li-ion battery sorting machine

Characteristic:

1. Fast sorting speed: 5500pcs/ hour, good stability.

2. This product has a high-precision internal resistance and voltage automatic test system.

3. The machine will accurately transfer the battery to the specified track according to the set resistance and voltage values.

4. Equipped with HD Screen and IPC, easy to observe test results, simple operation and high efficiency.

Device parameters

Name	Twelve channels Automatic Battery Sorting Machine
Model	WA-AS-12C
Voltage supply	220V / 50Hz (or can be customized)
Air pressure	0.5~0.8Mpa
Internal resistance	Hioki 3561 / HK 3561
Measurement of internal resistance	Range: 0~60mΩ Accuracy: ±0.5%rdg Measurement resolving power: 0.1mΩ
Measurement of internal pressure	Range: 0~10V Accuracy:±0.015%rdg Measurement resolving power: 0.1mV
Production efficiency	5500PCS/Hour (Single pad 5 PCS)
Control device	HD Screen & IPC
Size(LMH)	14609301680mm
Weight	＜200kg

Equipment configuration
