Scope of application:

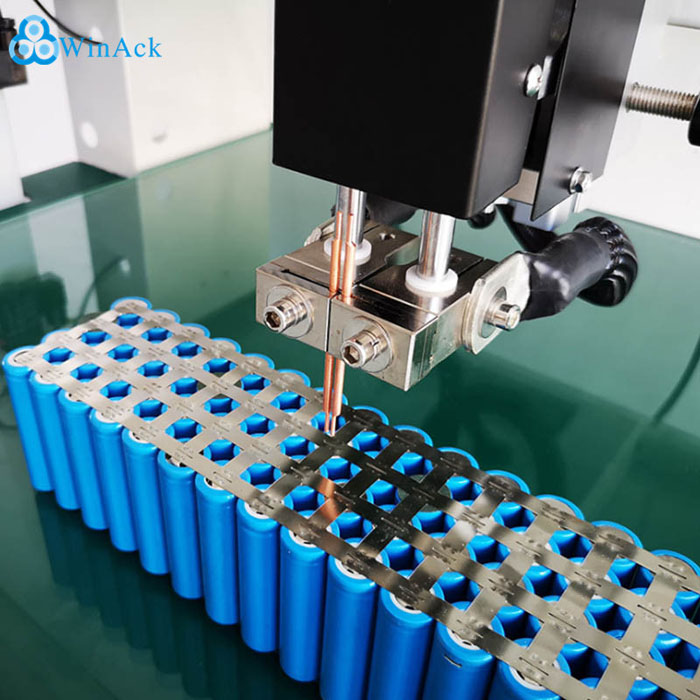

Nickel-plated steel spot welder is suitable for welding electric motorcycle battery, garden tool battery, EV battery, car star-stop battery…
Nickel-plated steel spot Welding Machine Characteristic:
1. The welding parameter system adopts digital setting, and the operation is clear and simple.
2. Three-phase power input, 4KHz IF output after rectification, high working frequency, low transformer loss, more energy saving.
3. Complete IO and external communication functions, convenient for automatic welding, RS-232 data communication port.
4. Ten groups of parameters are stored to facilitate various welding switching.
5. Pre-charge test function can be used to distinguish the welding path status.
6. Set the upper and lower limits of the current and add current waveform monitoring to determine if the welding quality is good.
7. Three-stage heating setting, designed to slowly increase and decrease current, effectively solve the problem of spatter during welding.
8. Soft switching technology is used to reduce the losses and electromagnetic interference of the reverse bridge.
9. Sound and light alarm for abnormal current to prevent false welding.

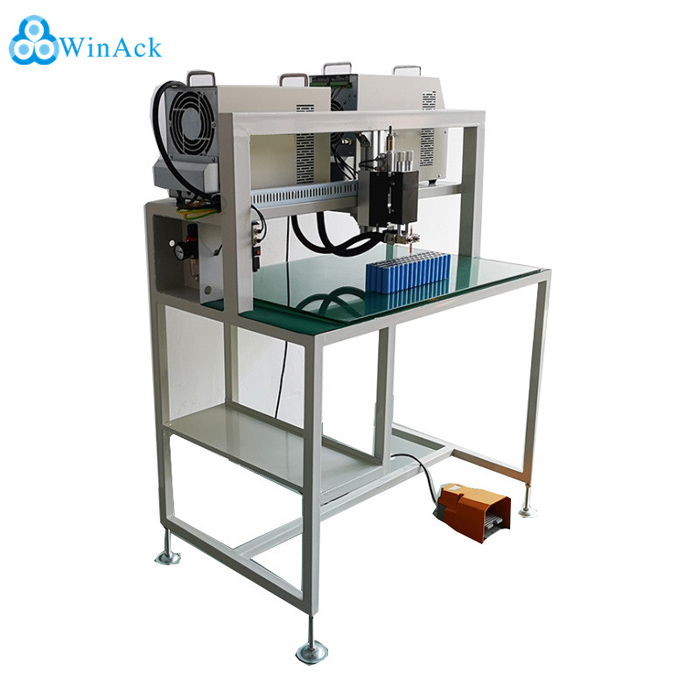

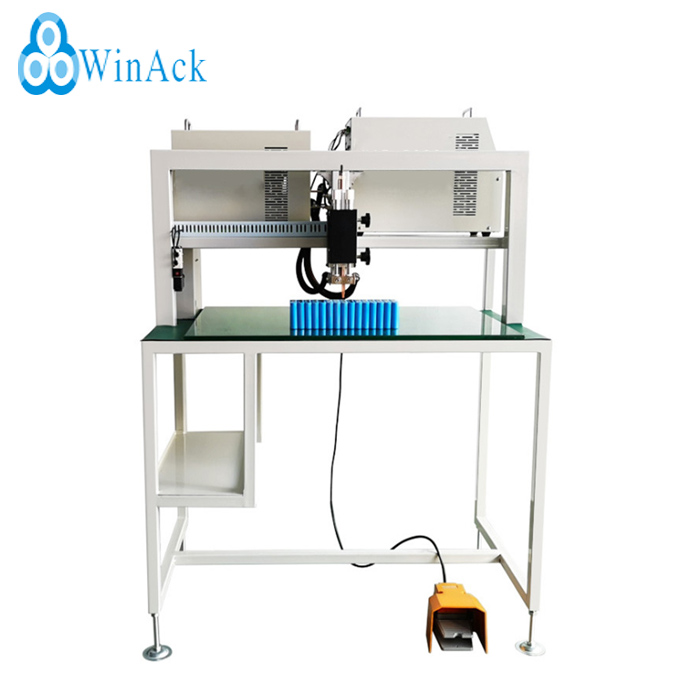

Device parameters
|
Name |
Spot Welding Machine for Battery Pack Assembly |
|
Model |
WA-SW-80 |
|
Power supply |
380V±10% / 50/60Hz |
|
Maximum Power of Transformer |
15KVA |
|
Output voltage |
9V |
|
Inverter frequency |
4KHZ |
|
Adjustment range of welding head height |
10-150mm |
|
Welding cycle time |
99 Paragraph |
|
Welding time |
1.0ms-20.0ms, accuracy:0.1ms |
|
Number of welding pulses |
2 |
|
Welding needle configuration |
1.6mm or 3mm or 6mm |
|
Debugging spacing of welding needles |
0-20mm |
|
Welding speed |
0.5~0.8 S/PCS |
|
Thickness of planar nickel sheet |
0.08-0.2mm Nickel-plated steel |
|
Thickness of bump nickel sheet |
0.2-0.5mm Nickel-plated steel |
|
Control mode |
Fixed current control |
|
Welding method |
Single point welding / Continuous point welding |
|
Cooling mode |
Water-cooled circulatory system（Optional） |
|
Size(L*W*H) |
1000*600*1310mm |
|
Overall weight |
130KG |
