Product description:

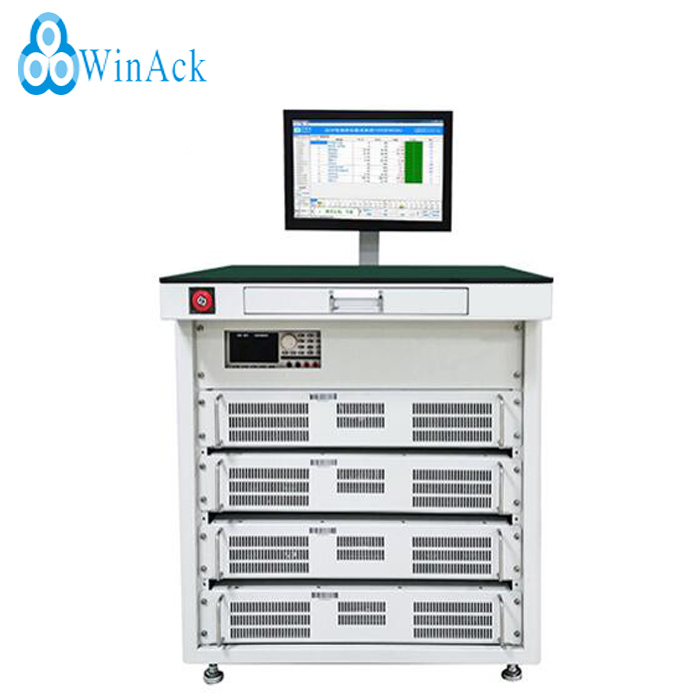

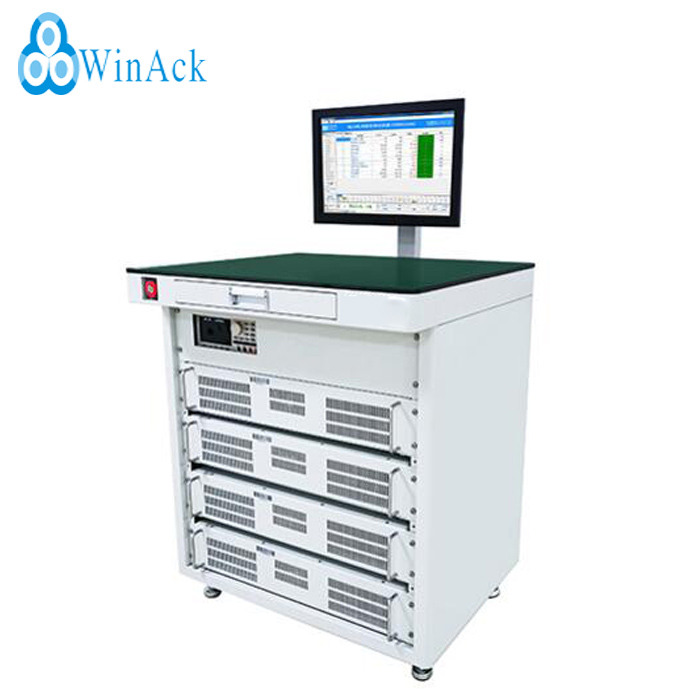

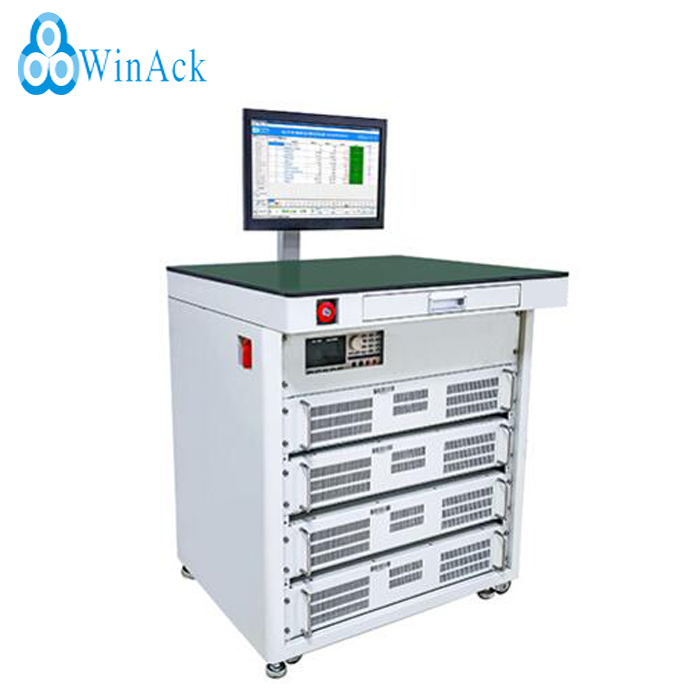

The battery pack tester is a professional testing machine for performing various performance tests on finished lithium battery packs. The testing machine can quickly detect various conventional performance indicators of lithium battery packs, such as: open circuit voltage, charging performance, discharge performance, load characteristics, AC internal resistance, DC internal resistance, overcurrent protection function, short circuit protection function, battery pack single-string maximum voltage difference, single-string internal resistance of battery pack. . .
Scope of application:
The battery pack testing equipment for finished lithium battery pack is suitable for E-bike battery pack, power tool battery pack, energy storage battery pack, golf cart battery pack, electric vehicle battery pack…
Characteristic:
1. A single tester can test the performance of the lithium battery pack and has a comprehensive detection function.
2. PC control, program operation, test parameter setting is very simple, after the test result is out, it will automatically judge whether it is qualified or not.
3. The test data is automatically stored in the PC and can be exported for easy traceability.
Device parameters
|
Name |
18650 Battery Pack Tester (100V 600A) |
|
Model |
WA-CT-1060 |
|
Power supply |
AC220V / 50Hz |
|
Voltage test |
12V-85V (±5mV) |
|
Current test |
1A~99A ±0.1A (customizable) |
|
Load voltage test |
12V~85V (±5mV) |
|
Load current test |
1A~99A (±0.1A ) |
|
Maximum test voltage |
85V ±5mV (customizable) |
|
Maximum discharge voltage |
85V ±0.1V (customizable) |
|
DC internal resistance test current |
1A~10A ( ±0.1A) |
|
DC internal resistance test |
10~999 mΩ (±1 mΩ) |
|
Maximum over current |
99V ±0.1A (customizable) |
|
Maximum charging current |
10A ±0.1A |
|
Minimum charging voltage |
12V ±5mV |
|
Minimum charging current |
1A ±0.1A |
|
Operating temperature |
0~50℃ |
|
Size(L*W*H) |
1100*1200*600mm |
|
Overall weight |
About 168KG |
Test case
|
|
Test items |
Unit |
Set minimum |
Set maximum |
Measured value |
OK or NG |
|
1 |
No-load voltage |
V |
37.50 |
55.50 |
48.516 |
OK |
|
2 |
Charging voltage |
V |
37.50 |
55.50 |
50.410 |
OK |
|
3 |
Charging current |
A |
16.00 |
24.00 |
19.80 |
OK |
|
4 |
Charging △ V |
V |
0.20 |
5.00 |
1.898 |
OK |
|
5 |
Charging DCR |
mΩ |
2 |
800 |
95.9 |
OK |
|
6 |
ACR |
mΩ |
5 |
50 |
11.6 |
OK |
|
7 |
Discharging DCR |
mΩ |
5 |
500 |
13.8 |
OK |
|
8 |
Discharge voltage |
V |
37.50 |
55.50 |
47.668 |
OK |
|
9 |
Discharge current |
A |
40 |
60 |
49.97 |
OK |
|
10 |
Discharging △ V |
V |
0.10 |
10.00 |
0.781 |
OK |
|
11 |
Overcurrent protection current |
A |
120.00 |
600.00 |
501.72 |
OK |
|
12 |
Overcurrent recovery voltage |
V |
37.50 |
55.50 |
48.158 |
OK |
